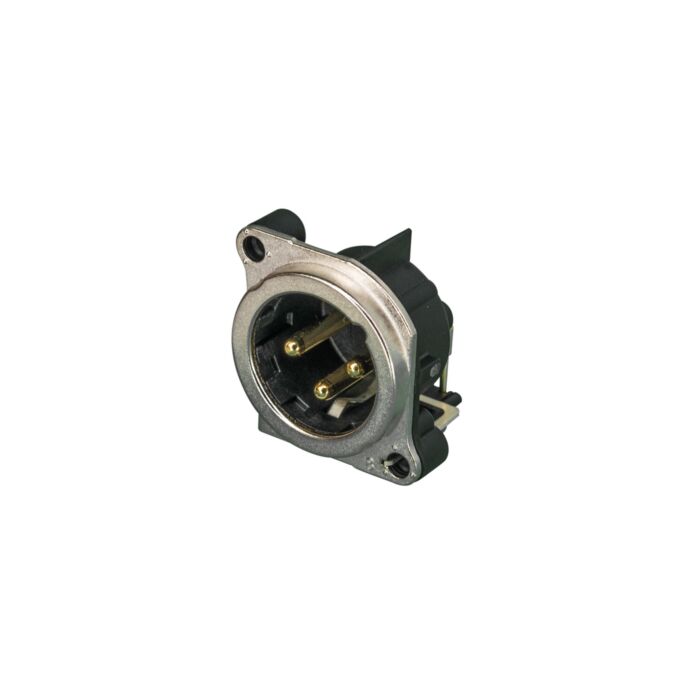

Neutrik NC3MBH-1. B Series XLR. Male plug
£2.68
In stock
We have 359 items in stock!
SKU
CHASSIS_NC3MBH-1
Multibuy discounts calculated at checkout
- Buy 5 for £2.55 each and save 5%
- Buy 10 for £2.41 each and save 10%
- Buy 15 for £2.28 each and save 15%
- Buy 20 for £2.14 each and save 20%
Smallest XLR receptacles, highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Housing flammability UL94V-0
Smallest XLR receptacles, highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Housing flammability UL94V-0
3 pole male XLR receptacle, grounding: mating connector shell to pin1 and front panel, steel retention lug, horizontal PCB mount
Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - PCB |
| Series Range Name | Neutrik B Series |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
