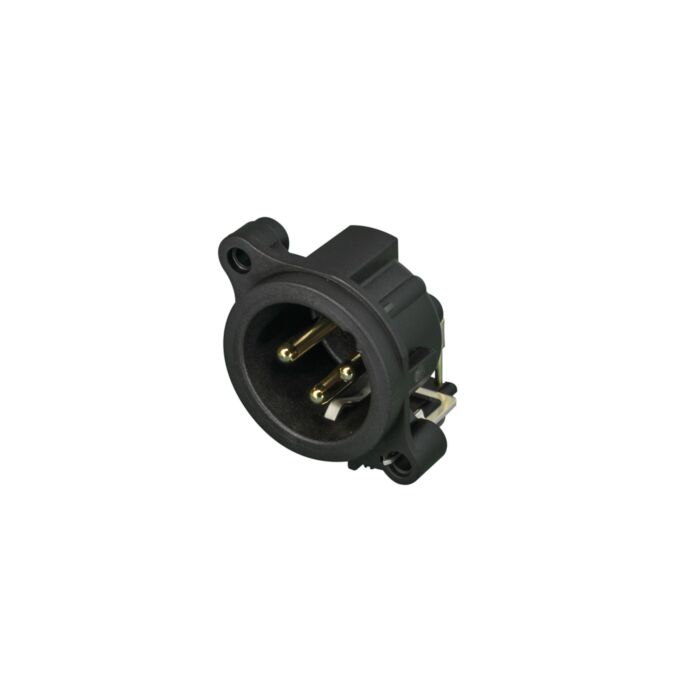

Neutrik NC3MAH. A Series XLR. Male plug
£1.42
In stock
We have 191 items in stock!
SKU
CHASSIS_NC3MAH
Multibuy discounts calculated at checkout
- Buy 5 for £1.35 each and save 5%
- Buy 10 for £1.28 each and save 10%
- Buy 15 for £1.21 each and save 15%
- Buy 20 for £1.14 each and save 20%
- Smallest XLR receptacles, highest packing density
- Plastic housing
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
- Smallest XLR receptacles, highest packing density
- Plastic housing
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - PCB |
| Series Range Name | Neutrik A Series |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
