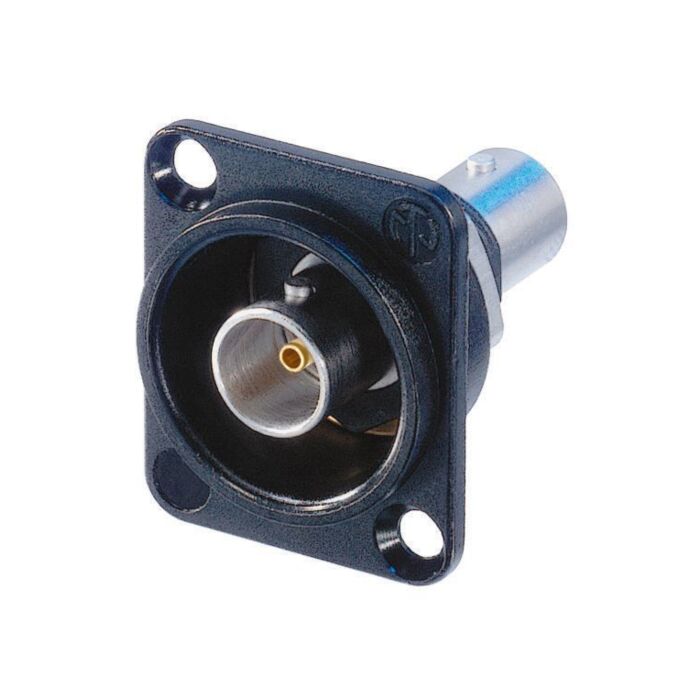

Neutrik NBB75DFIB-P. rearTWIST Standard BNC. Female socket
£12.88
In stock
We have 129 items in stock!
SKU
CHASSIS_NBB75DFIB-P
Multibuy discounts calculated at checkout
- Buy 5 for £12.24 each and save 5%
- Buy 10 for £11.59 each and save 10%
- Buy 15 for £10.95 each and save 15%
- Buy 20 for £10.30 each and save 20%
Isolated BNC chassis connector, feedthrough in black D-shape housing, protruding version (makes locking and unlocking of conventional BNC cable connectors easy.)
Isolated BNC chassis connector, feedthrough in black D-shape housing, protruding version (makes locking and unlocking of conventional BNC cable connectors easy.)
Neutrik's BNC chassis connectors offer a true 75 ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use in a D-shape housing (audio industry standard).
- Gold plated cage type center contact
- True 75 ohm design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing
- Protruding bulkhead jack (makes locking and unlocking of conventional BNC cable connectors easy)
- Color coding possible
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Feedthrough |
| Series Range Name | rearTWIST Standard |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
