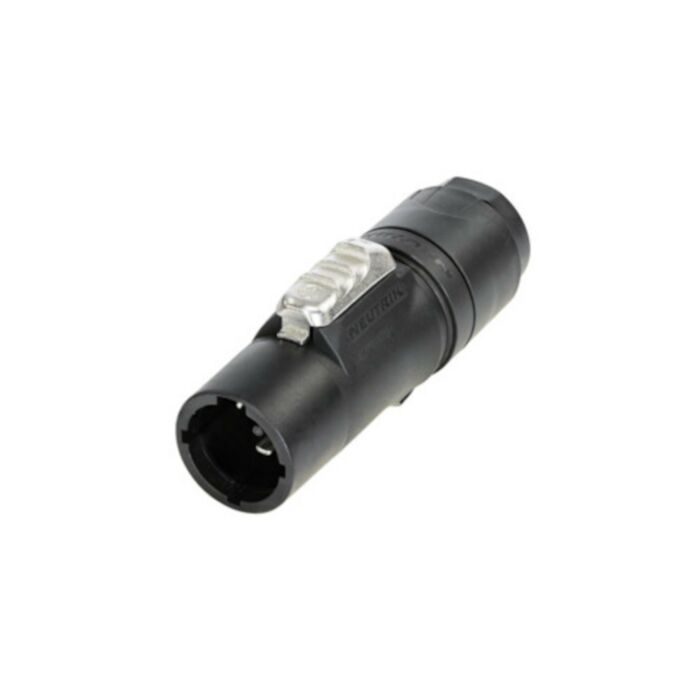

Neutrik NAC3MX-W-TOP-L. TOP Series AC Power. Male plug
£11.10
In stock
We have 462 items in stock!
SKU
Mains_NAC3MX-W-TOP-Large.Bush
Multibuy discounts calculated at checkout
- Buy 5 for £10.55 each and save 5%
- Buy 10 for £9.99 each and save 10%
- Buy 15 for £9.44 each and save 15%
- Buy 20 for £8.88 each and save 20%
Heavy duty sealed power connector for harsh and demanding environment
NEW: Locking cable connector€‹ for big power cords with outer diameters from 10€“16 mm (0.39 €“ 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 and SJOWW 12/3 . Certified to EN/UL 60320-1.
Locking cable connector, power outlet, screw terminal, IP65, 16A (USA: 20A)
The powerCON TRUE1 TOP is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.
- For cable diameters 10-16 mm (0.39 €“ 0.63 inches)
- IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1.
- TOP True Outdoor Protection
- Single phase connector with Circuit Breaking Capability (20 A 250 VAC)
- Extremely robust and reliable cable retention
- Superior NEUTRIK quality standard
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | Neutrik True1 Powercon |
| Mounting Method | Cable Mount - Screw Terminal |
| Series Range Name | Neutrik TOP Series |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Current Rating | 15 amps |
| Voltage Rating | 230-240v |
| IP Rating | IP65 |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
