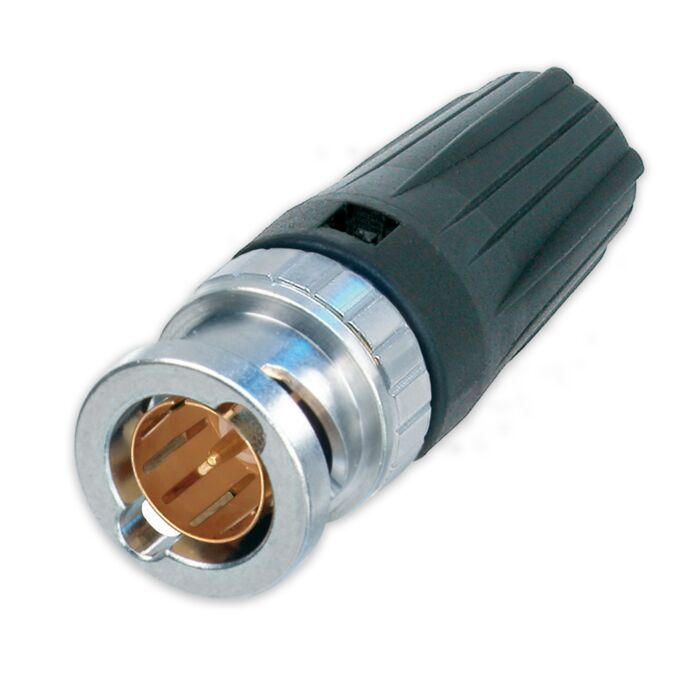

Neutrik HD NBNC75BRU11 True 75 Ω BNC Connector. Rear Twist. Colour Coded
£3.66
In stock
We have 224 items in stock!
SKU
BNC_NBNC75BRU11
Multibuy discounts calculated at checkout
- Buy 5 for £3.48 each and save 5%
- Buy 10 for £3.29 each and save 10%
- Buy 15 for £3.11 each and save 15%
- Buy 20 for £2.93 each and save 20%
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables: Belden 1694F, Van Damme HD Vision Flexible RG6/U
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features & Benefits
- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 Ω design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Technical Info
Title - NBNC75BRU11
Connection Type - BNC 75 Ω
Gender - male
Electrical
- Contact resistance - ≤ 3 mΩ (inner)
- Contact resistance - ≤ 2 mΩ (outer)
- Dielectric strength - 1,5 kVdc
- Impedance - 75 Ω
- Insulation resistance - > 5 GΩ
- Rated voltage - <50 V
- VSWR
- ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
- Cable O.D. - < 7.3 mm
- Cable retention - > 30 N (Center)
- Crimp size - 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)
- Crimp size (pin) - 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
- Insertion force - < 25 N
- Lifetime - > 1000 mating cycles
- Locking device - Bayonett
- Cable anchoring - Jacket crimping
Material
- Contacts - Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
- Insert - PTFE
- Shell - Brass (CuZn39Pb3)
- Shell plating - Optalloy®
Environmental
- Temperature range - -30 °C to +85 °C
- Contact crimpability - Complies with IEC 60803 and IEC 60352-2
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Crimp |
Series Range Name | Neutrik rearTWIST HD |
Contact Material | Gold Plated |
Number of Contacts | 2 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
