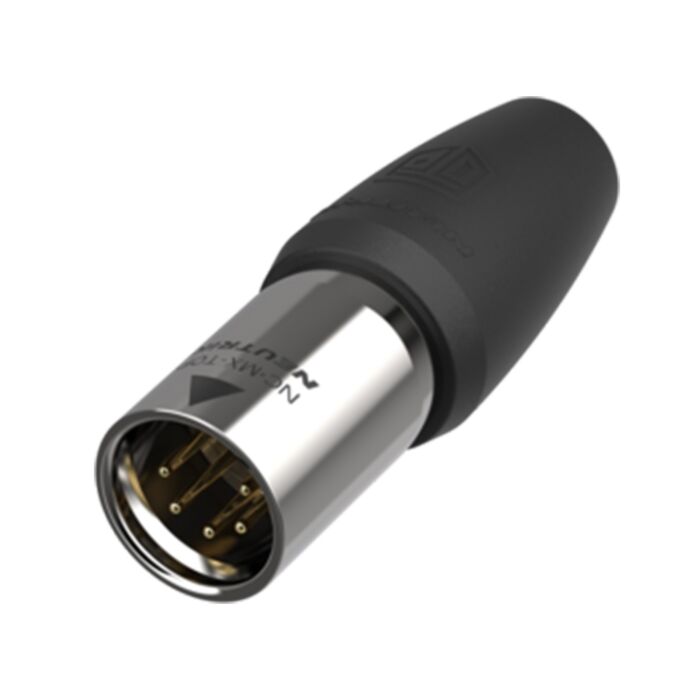

Neutrik 5 Pin NC5MX1-TOP Male XLR Connector. IP65 & UL50E Protection. Outdoor
£17.43
In stock
We have 104 items in stock!
SKU
XLR_NC5MX1-TOP
Multibuy discounts calculated at checkout
- Buy 5 for £16.56 each and save 5%
- Buy 10 for £15.69 each and save 10%
- Buy 15 for £14.82 each and save 15%
- Buy 20 for £13.94 each and save 20%
5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable/chassis connector of the XLR TOP range (IP65).
Gold contacts are standard.
Features & Benefits
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65
- Uses high impact UV resistant materials
- TOP-Approved in consideration of UL50E
Technical Information
|
Electrical |
|
|
Capacitance between contacts |
≤ 4 pF |
|
Contact resistance |
≤ 3 mΩ |
|
Dielectric strength |
1,5 kVdc |
|
Insulation resistance |
> 10 GΩ (initial) |
|
Rated current per contact |
7.5 A |
|
Rated voltage |
< 50 V |
|
Mechanical |
|
|
Cable O.D. |
5.0 - 8.0 mm |
|
Insertion force |
≤ 20 N |
|
Withdrawal force |
≤ 20 N |
|
Lifetime |
> 1000 mating cycles |
|
Wiresize |
max. 1.0 mm² |
|
Wiresize |
max. 18 AWG |
|
Wiring |
Solder contacts |
|
Locking device |
Latch lock |
|
Material |
|
|
Bushing |
UV-resistant rubber |
|
Contact plating |
Gold (Au) over Nickel (Ni) |
|
Contacts |
Brass (CuZn39Pb3) |
|
Insert |
Polyamide (PA 66) |
|
Locking element |
Stainless steel |
|
Shell |
Stainless steel |
|
Strain relief |
Polyacetal |
|
Environmental |
|
|
Approvals |
UL |
|
Flammability |
UL 94 V-0 |
|
Standard compliance |
IEC 61076-2-103 |
|
Protection class |
IP65, UL50E enclosure type 4 (mated) |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature range |
-30 °C to +80 °C |
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Series Range Name | Neutrik TOP Series |
| Contact Material | Gold Plated |
| Number of Contacts | 5 Pole |
| Current Rating | 16 amps |
| IP Rating | IP65 |
| Pack Quantity | Pack of 1 |
