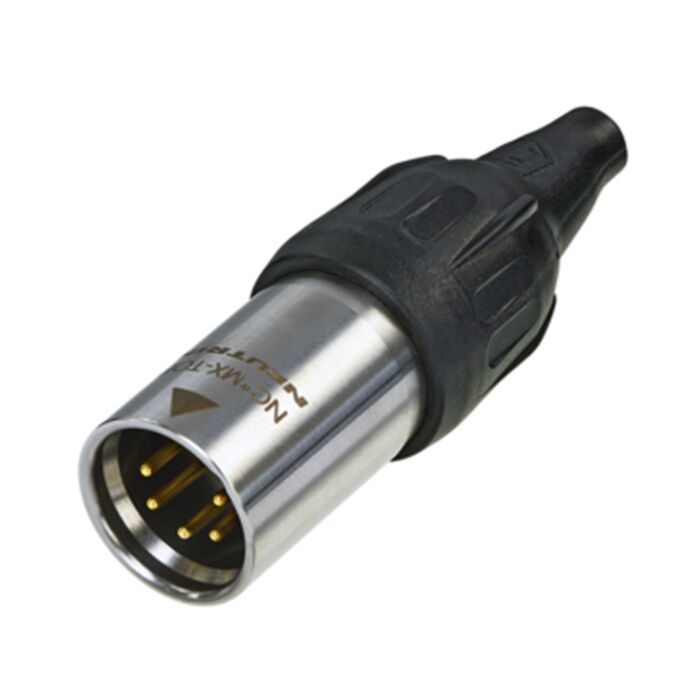

Neutrik 5 Pin NC5MX-TOP Male XLR Connector. IP65 & UL50E Protection. Outdoor
£17.19
In stock
We have 14 items in stock!
SKU
XLR_NC5MX-TOP
Multibuy discounts calculated at checkout
- Buy 5 for £16.33 each and save 5%
- Buy 10 for £15.47 each and save 10%
- Buy 15 for £14.61 each and save 15%
- Buy 20 for £13.75 each and save 20%
5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
Features & Benefits
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
- Uses high impact UV-resistant materials
Technical Information
Title NC5MX-TOP
Connection Type XLR
Gender male
Electrical
- Capacitance between contacts - ≤ 4 pF
- Contact resistance - ≤ 3 mΩ
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 10 GΩ (initial)
- Rated current per contact - 7.5 A
- Rated voltage - < 50 V
Mechanical
- Cable O.D. - 5.0 - 8.0 mm
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime - > 1000 mating cycles
- Wiresize - max. 1.0 mm²
- Wiresize - max. 18 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
Material
- Bushing - UV-resistant rubber
- Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA 66)
- Locking element - Stainless steel
- Shell - Stainless steel
- Strain relief - Polyacetal (POM)
Environmental
- Approvals - UL
- Flammability - UL 94 V-0
- Standard compliance - IEC 61076-2-103
- Protection class - IP65, UL50E enclosure type 4 (mated)
- Solderability Complies with - IEC 68-2-20
- Temperature range - -30 °C to +80 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik TOP Series |
Contact Material | Silver Plated |
Number of Contacts | 5 Pole |
IP Rating | IP65 |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
