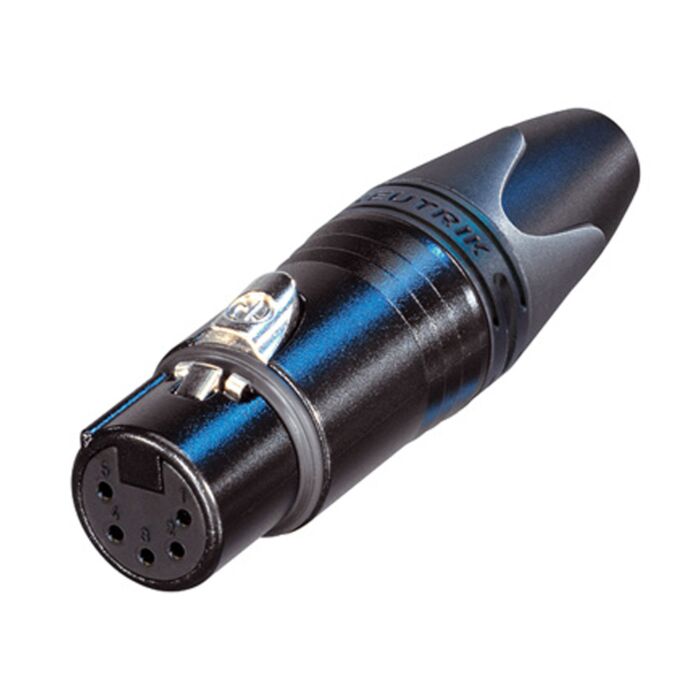

Neutrik 5 Pin NC5FXX-BAG Female XLR Connector
Multibuy discounts calculated at checkout
- Buy 5 for £10.93 each and save 5%
- Buy 10 for £10.36 each and save 10%
- Buy 15 for £9.78 each and save 15%
- Buy 20 for £9.21 each and save 20%
5 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
5 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features and Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Technical Information
Title - NC5FXX-BAG
Connection Type - XLR
Gender - female
Electrical
- Capacitance between contacts - ≤ 7 pF
- Contact resistance - ≤ 3 mΩ
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 10 GΩ (initial)
- Rated current per contact - 7,5 A
- Rated voltage - < 50 V
Mechanical
- Cable O.D. - 3.5 - 8.0 mm
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime - > 1000 mating cycles
- Wiresize - max. 1.0 mm²
- Wiresize - max. 18 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
Material
- Boot - Polyurethan
- Contact plating - 2 µm Ag over 2 µm Ni
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA66)
- Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Black chromium
- Strain relief - Polyacetal (POM)
Environmental
- Flammability - UL 94 V-0
- Standard compliance - IEC 61076-2-103
- Protection class - IP 40
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik XX Series |
Contact Material | Silver Plated |
Number of Contacts | 5 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
