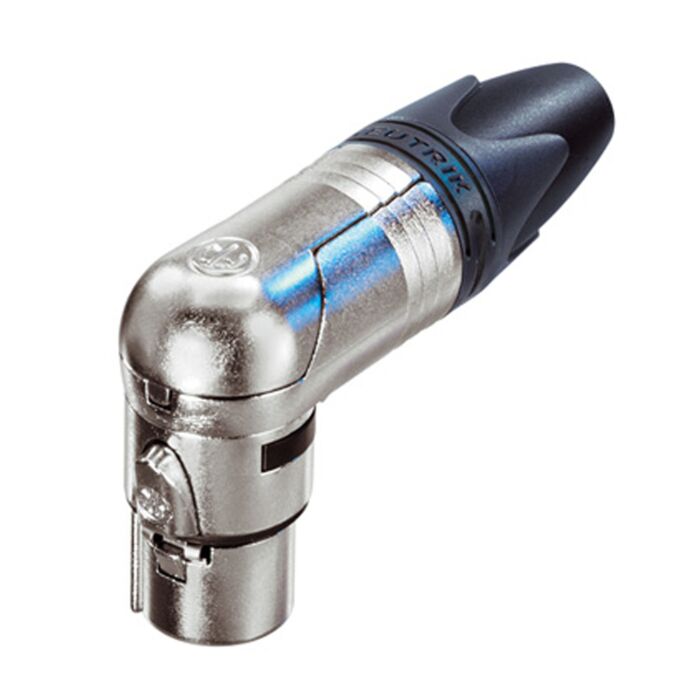

Neutrik 5 Pin NC5FRX Right-angled Female XLR Connector
Multibuy discounts calculated at checkout
- Buy 5 for £15.64 each and save 5%
- Buy 10 for £14.81 each and save 10%
- Buy 15 for £13.99 each and save 15%
- Buy 20 for £13.17 each and save 20%
5 pole right angle female cable connector, nickel housing, silver contacts The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
5 pole right angle female cable connector, nickel housing, silver contacts The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features and Benefits
- Extra slim right-angle connector
- 5 selectable cable outlet positions
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
Technical Information
Title NC5FRX
Connection Type XLR
Gender female
Electrical
- Capacitance between contacts ≤ 7 pF
- Contact resistance ≤ 3 mΩ
- Dielectric strength 1,5 kVdc
- Insulation resistance > 2 GΩ (initial)
- Rated current per contact 7,5 A
- Rated voltage < 50 V
Mechanical
- Cable O.D. - 3.5 - 8.0 mm
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime - > 1000 mating cycles
- Wiresize - max. 1.0 mm²
- Wiresize - max. 18 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
Material
- Boot - Polyurethan
- Contact plating - 2 µm Ag
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA66)
- Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
- Strain relief - Polyacetal (POM)
Environmental
- Flammability - UL 94 V-0
- Standard compliance - IEC 61076-2-103
- Protection class - IP 40
- Solderability Complies with - IEC 68-2-20
- Temperature range - -30 °C to +80 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik RX Series |
Contact Material | Silver Plated |
Number of Contacts | 5 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
