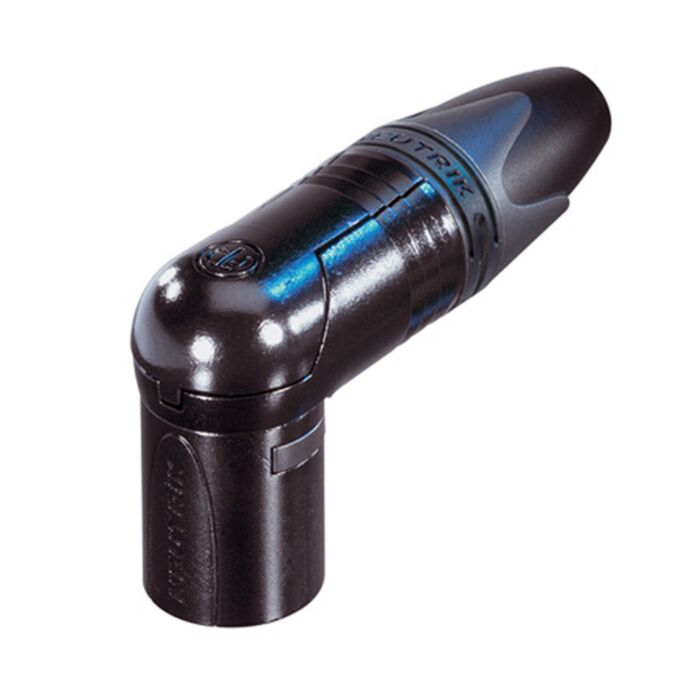

Neutrik 4 Pin NC4FRX-B Right-angled Female XLR Connector
Multibuy discounts calculated at checkout
- Buy 5 for £19.88 each and save 5%
- Buy 10 for £18.84 each and save 10%
- Buy 15 for £17.79 each and save 15%
- Buy 20 for £16.74 each and save 20%
4 pole right angle female cable connector, black metal housing, gold contacts.
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
4 pole right angle female cable connector, black metal housing, gold contacts.
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features and Benefits
- Extra slim right-angle connector
- 5 selectable cable outlet positions
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
Technical Information
- Title - NC4FRX-B
- Connection Type - XLR
- Gender - Female
Electrical
Capacitance between contacts - ≤ 7 pF
Contact resistance - ≤ 3 mΩ
Dielectric strength - 1,5 kVdc
Insulation resistance - > 2 GΩ (initial)
Rated current per contact - 10 A
Rated voltage - < 50 V
Mechanical
- Cable O.D. - 3.5 - 8.0 mm
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime - > 1000 mating cycles
- Wiresize - max. 1.5 mm²
- Wiresize - max. 16 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
Material
- Boot - Polyurethan
- Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA66)
- Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Black chromium
- Strain relief - Polyacetal (POM)
Environmental
- Flammability - UL 94 V-0
- Standard compliance - IEC 61076-2-103
- Protection class - IP 40
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik RX Series |
Contact Material | Gold Plated |
Number of Contacts | 4 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
