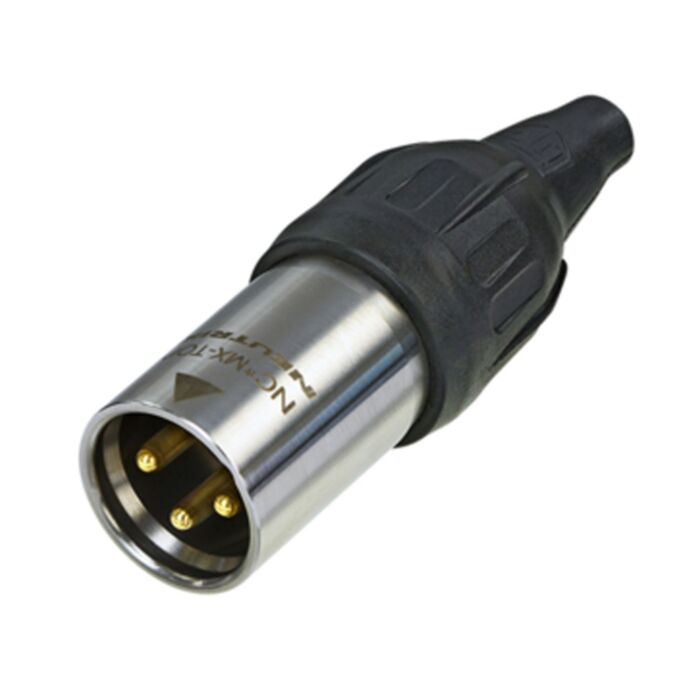

Neutrik 3 Pin NC3MX-TOP Male XLR Connector. IP65 & UL50E Protection. Outdoor

Features and Benefits

• Heavy duty sealed XLR connector range for harsh and demanding environment
• IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
• Uses high impact UV resistant materials

Technical Information

• Product Title -NC3MX-TOP
• Connection Type - XLR
• Gender - Male

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 3 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 16 A
• Rated voltage - < 50 V

Mechanical

• Cable O.D. -5.0 - 8.0 mm
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - >5000 mating cycles
• Wiresize -max. 1.5 mm2
• Wiresize -max. 16 AWG
• Wiring - Solder contacts
• Locking device - Latch lock

Material

• Boot -UV-resistant rubber
• Contact plating -0.2 µm Au hard alloy over 2 µm Ni
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA66)
• Locking element -Stainless steel
• Shell -Stainless steel
• Strain relief - Polyacetal (POM)

Environmental

• Approvals - UL
• Flammability - UL 94 V-0
• Standard compliance -IEC 61076-2-103
• Protection class -IP65, UL50E enclosure type 4 (mated)
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
