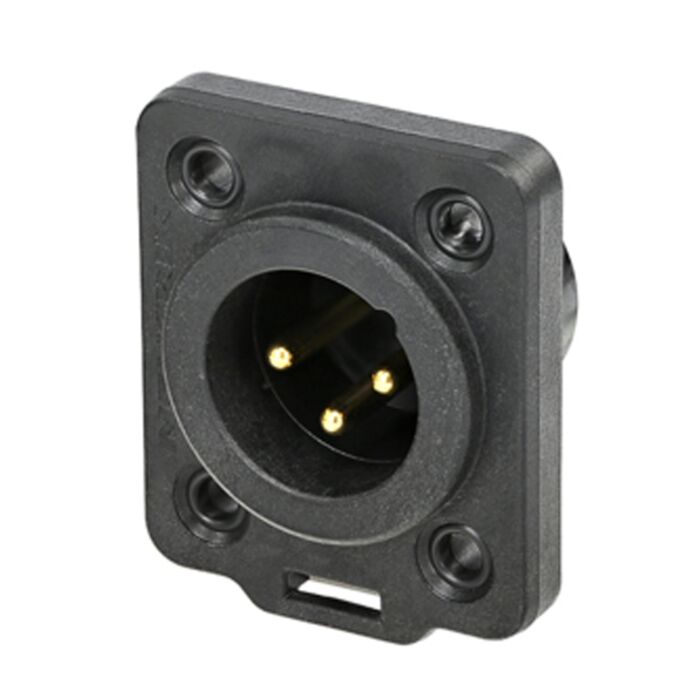

Neutrik 3 Pin NC3MDX-TOP Male XLR Chassis Connector. IP65 & UL50E Protection. Outdoor
Neutrik 3 Pin NC3MDX-TOP Male XLR Chassis Connector. IP65 & UL50E Protection. Outdoor
£7.70
In stock
We have 197 items in stock!
Multibuy discounts calculated at checkout
-
Buy 5 for
£7.32
each and save 5%
-
Buy 10 for
£6.93
each and save 10%
-
Buy 15 for
£6.55
each and save 15%
-
Buy 20 for
£6.16
each and save 20%
3 pole male chassis connector, TRUE OUTDOOR PROTECTION (TOP) The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use.
Features and Benefits
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
- Uses high impact UV-resistant materials
- Maintains sealing when in use and when disconnected
Technical Information
- NC3MDX-TOP
- Connection Type - XLR
- Gender - male
Electrical
- Capacitance between contacts - ≤ 4 pF
- Contact resistance - ≤ 5 mΩ
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 10 GΩ (initial)
- Rated current per contact 16 A
- Rated voltage - < 50 V
Mechanical
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime - > 5000 mating cycles
- Wiring - Solder contacts
- Locking device - Latch lock
- Mounting direction - Front mounting
- Chassis shape - D
Material
- Contact plating - 0.2 µm Au over 2 µm Ni
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA 6.6 30 % GR)
- Locking element - Stainless steel
- Gasket - TPE
- Shell - Polyamide (PA 6.6 30 % GR)
Environmental
- Flammability - UL94 V-0
- Standard compliance - IEC 61076-2-103
- Protection class - IP65, UL50E enclosure type 4 (mated or sealing cap closed)
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °C
More Information
Delivery Speed |
Next Day delivery available if 'In Stock' |
Mounting Method |
Panel Mount - Solder |
Series Range Name |
Neutrik TOP Series |
Contact Material |
Silver Plated |
Number of Contacts |
3 Pole |
IP Rating |
IP65 |
Pack Quantity |
Pack of 1 |
Manufacturer URL |
Download Data Sheet
|
Data Sheet URL |
Download Data Sheet
|
