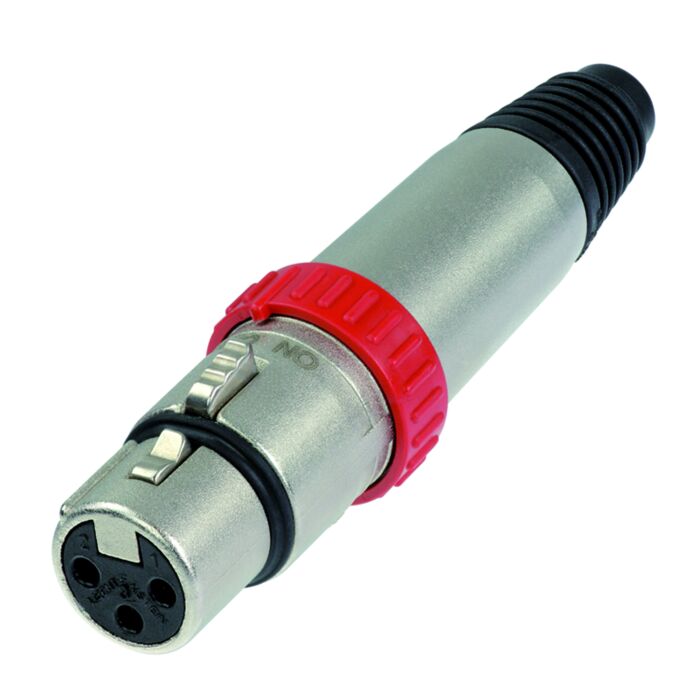

Neutrik 3 Pin NC3FXS Switched Female XLR Connector

NC3FXS

3 pole female cable connector, Nickel housing

FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

Features and Benefits

• Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3
• For use on a microphone without switch
• Rugged zinc diecast shell, long lasting and durable
• Rugged metal boot
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 3 mΩ (inner)
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 16 A
• Rated voltage - < 50 V

Mechanical

• Cable O.D. - 3.5 - 7.0 mm
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Wiresize - max. 2.5 mm²
• Wiresize - max. 14 AWG
• Wiring - Solder contacts
• Locking device - Latch lock

Material

• Boot - Polyurethan
• Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
• Contacts - Bronze (CuSn6)
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - St3K32 (latch) / Ck 67 (spring)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Strain relief - Polyacetal (POM)

Environmental

• Flammability - UL 94 HB
• Standard compliance - IEC 61076-2-103
• Protection class - IP 40
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
