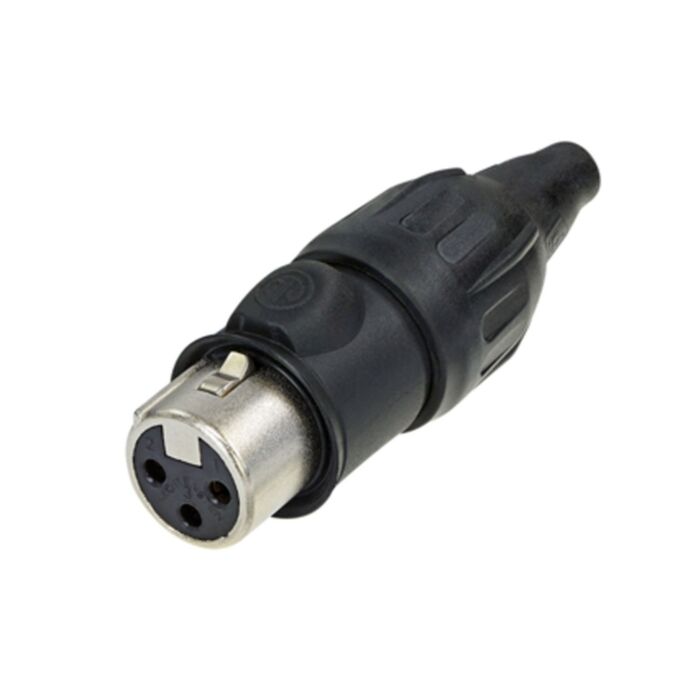

3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts. The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts. The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
Features & Benefits
Heavy-duty sealed XLR connector range for harsh and demanding environment
IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
Uses high impact UV resistant materials
Technical Information
Title - NC3FX-TOP
Connection Type - XLR
Gender - female
Electrical
Capacitance between contacts - ≤ 4 pF
Contact resistance - ≤ 3 mΩ
Dielectric strength - 1,5 kVdc
Insulation resistance - > 10 GΩ (initial)
Rated current per contact - 16 A
Rated voltage - < 50 V
Mechanical
Cable O.D. - 5.0 - 8.0 mm
Insertion force - ≤ 20 N
Withdrawal force - ≤ 20 N
Lifetime - > 5000 mating cycles
Wiresize - max. 1.5 mm²
Wiresize - max. 16 AWG
Wiring - Solder contacts
Locking device - Latch lock
Material
Bushing - UV-resistant rubber
Contact plating - 0.2 µm Au hard alloy over 2 µm Ni
Contacts - Bronze (CuSn8)
Insert - Polyamide (PA66)
Locking element - St3K32 (latch) / Ck 67 (spring)
Shell - Zinc diecast (ZnAI4Cu1)
Shell plating - Nickel
Strain relief - Polyacetal (POM)
Sealing jacket - UV-resistant rubber
Environmental
Approvals - UL
Flammability - UL 94 V-0
Standard compliance - IEC 61076-2-103
Protection class - IP65, UL50E enclosure type 4 (mated)
