Neutrik 3 Pin NC3FM-C Convertcon Male AND Female XLR Connector

Neutrik NC3FM-C Convertcon

Balanced XLR Connector, 3 Pole, Male and Female, Gold Contacts, Nickel Housing

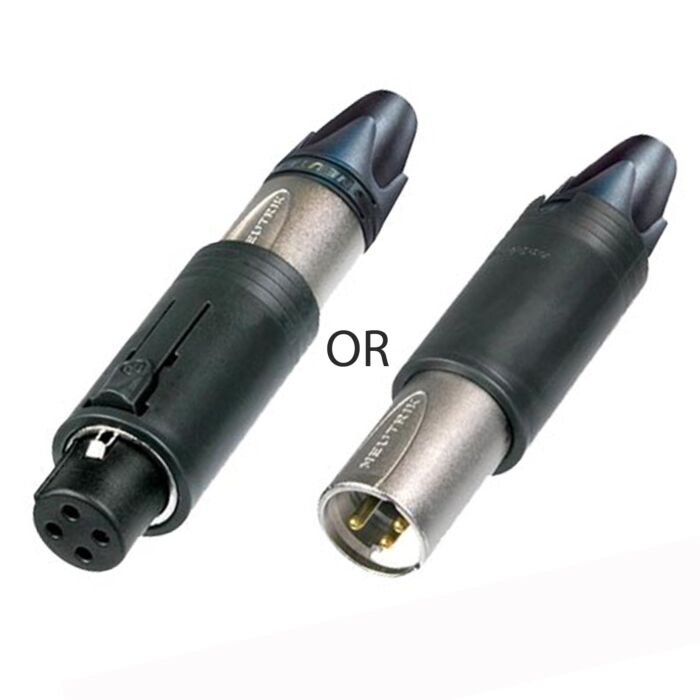

Innovation at its best. This versatile XLR connecter is both Male and Female. The transition is made by simply pushing, or pulling the solid plastic sheath/collar into place, to reveal or retract the integral three pins, very useful in a range of applications. These connectors have all the benefits of the XX series, with excellent strain relief and the added bonus of being trans-gender

The Gold Contacts are made from Bronze (female), Brass (male) and are plated with gold. They offer superior durability over silver as they do not tarnish easily.

3 Pole relates to the amount of carrier signals inside the cable/connector assembly, in this case three. This is a balanced/stereo cable. Two signal carriers and a ground

Tech Specs

Electrical

• Capacitance between contacts - ≤ 4 pF
• Contact resistance - ≤ 3 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 2 GΩ (initial)
• Insulation resistance - > 1 GΩ (after damp heat test)
• Rated current per contact - 16 A
• Rated voltage - 50 V

Materiel

• Boot - Polyuretan
• Bushing - Polyamide (PA 6 15% GR)
• Contact plating - 0.2 µm Au
• Contacts - Bronze (CuSn8) female
• Contacts - Brass (CuZn39Pb3) male
• Insert - Polyamide (PA 6.6 30 % GR)
• Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Strain relief - Polyacetal (POM)
