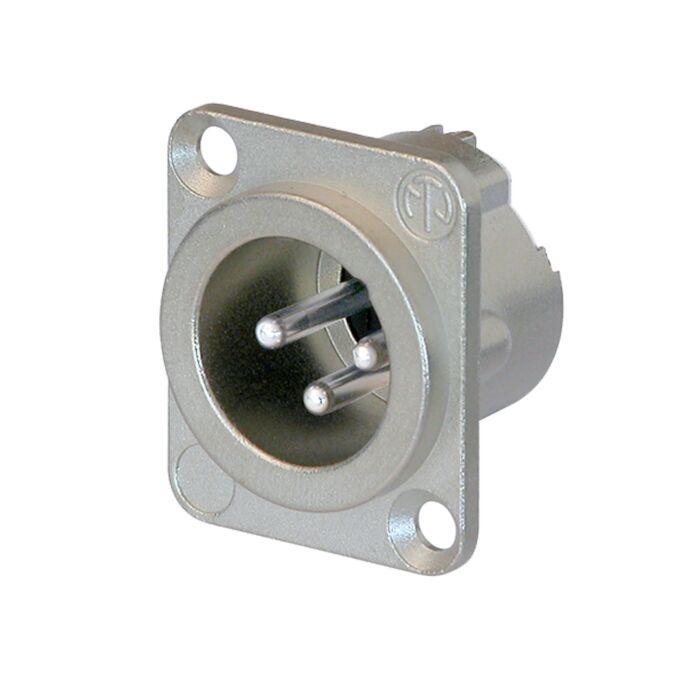

Neutrik NC3MD-LX Male 3 pin XLR Chassis Panel Mount. Silver Contacts
£5.10
In stock
We have 850 items in stock!
SKU
CHASSIS_NC3MDLX
Multibuy discounts calculated at checkout
- Buy 5 for £4.85 each and save 5%
- Buy 10 for £4.59 each and save 10%
- Buy 15 for £4.34 each and save 15%
- Buy 20 for £4.08 each and save 20%
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
NC3MD-LX
3 pole male receptacle, solder cups, Nickel housing, silver contacts
Features and Benefits
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Electrical
- Capacitance between contacts - ≤ 4 pF
- Contact resistance - ≤ 5 mΩ
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 10 GΩ (initial)
- Rated current per contact - 16 A
- Rated voltage - < 50 V
Mechanical
- Insertion force - ≤ 20 N
- Withdrawal force - ≤ 20 N
- Lifetime- > 1000 mating cycles
- Wiresize - max. 2.5 mm²
- Wiresize - max. 14 AWG
- Wiring - Solder contacts
- Locking device - Latch lock
- Chassis shape - D
Material
- Contact plating- 2 µm Ag over 2 µm Ni
- Contacts - Brass (CuZn35Pb2)
- Insert - Polyamide (PA 6.6 30 % GR)
- Locking element - Steel Ck67
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
Environmental
- Flammability - UL 94 HB
- Standard compliance - IEC 61076-2-103
- Protection class - IP 40
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +80 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Panel Mount - Solder |
Series Range Name | Neutrik DLX Series |
Contact Material | Silver Plated |
Number of Contacts | 3 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
