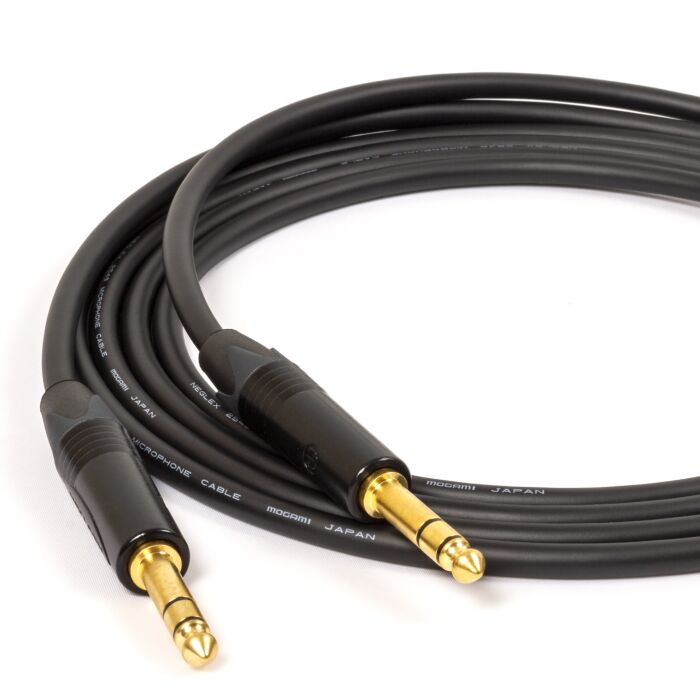

Mogami W2549 Low Capacitance Balanced Cable. Neutrik GOLD TRS Jack Lead

Mogami W2549 is a much sort after cable in the pro-audio and HiFi world. Mogami go the extra mile with the materials and specification of their cables. The Conductor insulation is XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering. The overall screen is a spiralled Bare Copper and is superior to foil or braided shields for sound quality. W2549 has an impressively low capacitance of 76pF/m (23pF/Ft).

We have used world renowned Neutrik Gold plated connectors in this range of cables to ensure a connection that will last. Gold plating does not tarnish as easily as silver/nickel so you can have faith that the signal will not degrade with time.

• Highly Flexible Mogami 2549 cable
• 2x Neutrik NP3X-B Gold 1/4" TRS Male Jacks
• Terminated with 3.5% silver solder

Technical Spec

• Part No. W2549
• No. of Conductor - 2
• Conductor Details - 30/0.12 OFC
• Conductor Size(mm²) - 0.339mm² (#22 AWG)
• Insulation Overall Diameter(mm) - 1.9Ø (0.075")
• Insulation Material - XLPE (Cross-Linked Polyethylene)
• Insulation Colours - Blue / Clear
• Shield - Served Approx. 64/0.18A
• Jacket Overall Diameter(mm) - 6.0Ø (0.236")
• Jacket Material - Flexible PVC
• Weight per 1m - 55g
• DC Resistance at 20°C Inner Cond - 0.058Ω/m(0.018Ω/Ft)
• DC Resistance at 20°C Shield - 0.013Ω/m(0.004Ω/Ft)
• Capacitance Conductor to Shield at 1kHz, 20°C - 76pF/m (23pF/Ft)
• Inductance between conductors at 1kHz. 20°C - 0.8µH/m(0.24µH/Ft)
• Electrostatic Noise** - 50mV Max.
• Electromagnetic Noise** - 0.15mV Max.
• Microphonics at 50KΩ Load** - 30m V Max.
• Voltage Breakdown - Must withstand at DC 125V/15sec.
• Insulation Resistance - 100000 M Ω × m Min. at DC 125V, 20°C
• Flex Life** - 14,500 cycles
• Tensile Strength - 657N
• Emigration - Non-emigrant to ABS
