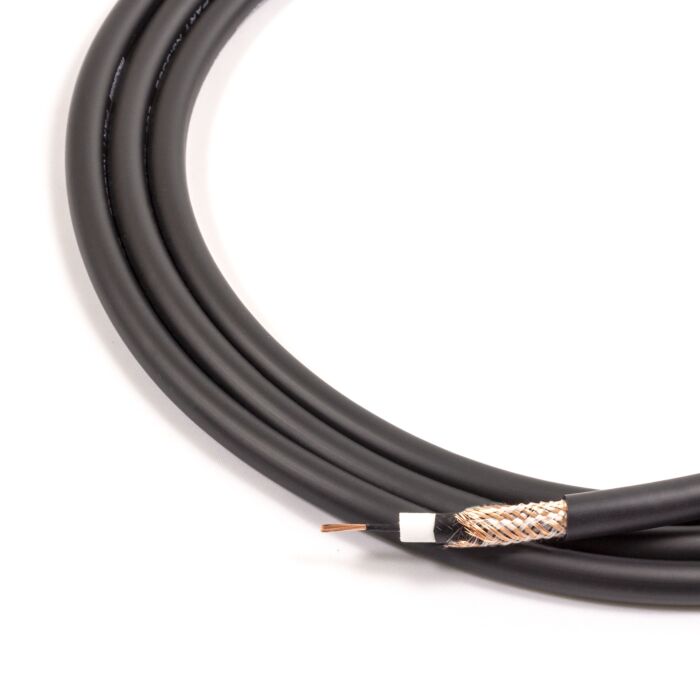

Mogami 3368 Ultimate Guitar Cable - by the meter
Multibuy discounts calculated at checkout
HOT TIP. When terminating instrument cables always ensure the black semi-conductive tubing around the centre conductor is cut back or removed completely. During the soldering process if too much heat is applied the conductor can pull through the dielectric and make contact with the tubing, causing a low-resistance short that sucks the tone out of the cable.
HOT TIP. When terminating instrument cables always ensure the black semi-conductive tubing around the centre conductor is cut back or removed completely. During the soldering process if too much heat is applied the conductor can pull through the dielectric and make contact with the tubing, causing a low-resistance short that sucks the tone out of the cable.
Low Capacitance Guitar Cable
MOGAMI 3368Ultimate is a cable designed for truly high performance sound while simultaneously being rugged enough for live stage and performance use. The large diameter cable is designed with lower capacitance for the purest possible sound, while not being so low to cause performance problems by being outside the design range of available instrument pickups. Coaxial configuration gives the most accurate tone. A challenge for large diameter coaxial cables is that the center conductor must move inside the structure when the cable is flexed, as such the cable can be delicate when handled roughly. The proprietary composite braid shield structure of the 3368 makes the cable quite rugged, and this new design maintains flexibility and performance even when used in a stage and touring environment.
A new method has been used to keep handling noise extremely low, so this cable can be used for any application where high impedance circuits (guitar pickups, sensor cables) with very low loss are needed.
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Cable Type | Guitar & HiFi Interconnect |
Cable Brand | Mogami |
Cable Conductor | OFC - 0.565mm2 (#20AWG) |
Cable Resistance | 0.033Ω/m (0.010/Ft) |
Cable Capacitance | 70pF/m (21.4pF/Ft) |
Cable Screening | Composite Braid Shield + Conductive Carbon PVC Tube |
Overall Diameter | 8mm |
Cable Jacket | Flexible PVC |
