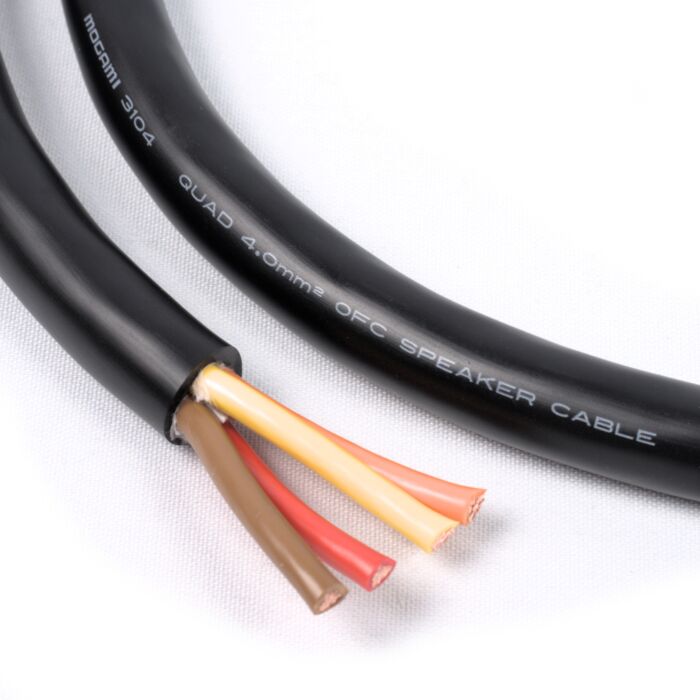

MOGAMI 3104 Superflexible 4 conductor speaker cable (4mm)
As low as
£3.53
In stock
SKU
CABLE.SPEAKER.4x4.MOGAMI.3104
Multibuy discounts calculated at checkout
MOGAMI 3104 Superflexible 4 conductor speaker cable (4mm)
SPECIFICATIONS AND CHARACTERISTICS
| Configuration |  |
|
|
|
| Part No. | W2972 | W3103 | W3104 | |
| No. of Conductor | 4 | 2 | 4 | |
| Conductor | Details | 7/26/0.12 OFC (bare) | 7/50/0.12 OFC (bare) | |
| Size | 2.05mm² (#15AWG) | 3.96mm² (#12AWG) | ||
| Insulation Ov. Dia.(mm) | 3.2Ø (0.126"Ø) PVC | 4.5Ø (0.177"Ø) PVC | ||
| Jacket | Ov. Dia.(mm) | 10.5Ø (0.413"Ø) | 12.0Ø (0.472"Ø) | 14.5Ø (0.571"Ø) |
| Material | Flexible PVC, Matte Black | |||
| Weight per 153m (500Ft) Roll | 26kg | 30kg | 48kg | |
| DC Resistance (20°C) | 0.0088Ω/m(0.0027Ω/Ft) | 0.005Ω/m(0.0015Ω/Ft) | ||
| Inductance (1kHz, 20°C) (Refer to the figures shown in the capacitance data.) |
1-2 | 0.7µH/m (0.21µH/Ft) |
0.6µH/m (0.18µH/Ft) |
0.6µH/m (0.18µH/Ft) |
| 1-3 | 0.7µH/m (0.21µH/Ft) |
- | 0.6µH/m (0.18µH/Ft) |
|
| Capacitance (20°C) | Frequency | 100Hz | 1kHz | 10kHz | 50kHz | 100kHz |
W2972
|
1-2 | 130pF/m (39.7pF/Ft) |
100pF/m (30.5pF/Ft) |
81pF/m (24.7pF/Ft) |
74pF/m (22.6pF/Ft) |
71pF/m (21.7pF/Ft) |
| 1-3 | 110pF/m (33.6pF/Ft) |
79pF/m (24.1pF/Ft) |
63pF/m (19.2pF/Ft) |
57pF/m (17.4pF/Ft) |
56pF/m (17.1pF/Ft) |
|
W3103
|
1-2 | 106pF/m (32.3pF/Ft) |
93pF/m (28.4pF/Ft) |
83pF/m (25.3pF/Ft) |
76pF/m (23.2pF/Ft) |
74pF/m (22.6pF/Ft) |
W3104
|
1-2 | 110pF/m (33.6pF/Ft) |
99pF/m (30.2pF/Ft) |
86pF/m (26.2pF/Ft) |
78pF/m (23.8pF/Ft) |
76pF/m (23.2pF/Ft) |
| 1-3 | 90pF/m (27.5pF/Ft) |
78pF/m (23.8pF/Ft) |
67pF/m (20.4pF/Ft) |
61pF/m (18.6pF/Ft) |
59pF/m (18.0pF/Ft) |
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Amplifier to Speaker Wire |
