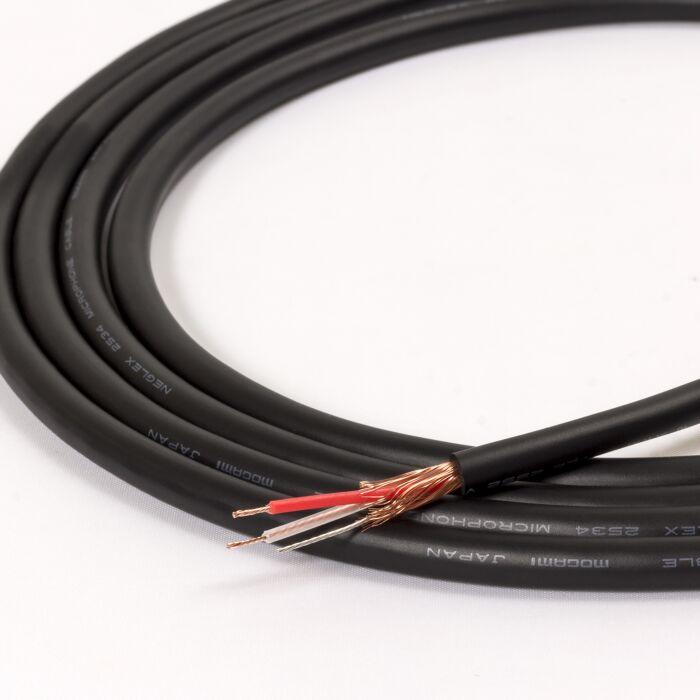

Mogami 3080 AES 110ohm Digital Cable. Black. 2 Core and Screen
As low as
£0.34
In stock
SKU
DIGI.MOGAMI.3080.Black.PRNT
Multibuy discounts calculated at checkout
Premium 110Ω AES/EBU DIGITAL AUDIO cable. Like the world standard MOGAMI multicore "Snake" cables, they are highly flexible with a compact design. These cables are easy to wire, install and handle.
Premium 110Ω AES/EBU DIGITAL AUDIO cable. Like the world standard MOGAMI multicore "Snake" cables, they are highly flexible with a compact design. These cables are easy to wire, install and handle.
All of MOGAMI 110W AES/EBU digital audio cables are designed with flexibility and handy configuration. Many variations are available from regular application type up to long distance application types, from single core up to 12-core types, internal wiring type, and interconnect application types. Strict tolerance control of impedance within ±5% up to ±10% at the maximum.
- Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, larger conductor size is used, which naturally results in lower attenuation.
- Besides, there are the following outstanding features similar to the standard analog multipair cables:
- Easy cable core identification system, such as numbered cable core
- Easy wiring assisted by the same conductor size drain wire
- Flexible and good low temperature characteristics
| Part No. | W3159 | W3228 | W3080 | W3135 | W3173 | W3160 ‾ W3163 |
| Suggested Maximum applicable length |
150m 492Ft |
300m 1000Ft |
150m 492Ft |
|||
SPECIFICATIONS
| Configuration |  |
 |
 |
|
 |
|
| Part No. | W3159 | W3228 | W3080 | W3135 | W3173 | |
| No. of Conductor | 2 | 2 | 2 | 2 | 2 | |
| Conductor | Details | 7/0.20A (7×#32AWG) | 36/0.08OFC (36×#40AWG) | 7/0.18A (7×#33AWG) | 7/0.18A (7×#33AWG) | 19/0.25A (19×#31AWG) |
| Size | 0.22mm² (#24AWG) | 0.18mm² (#25AWG) | 0.178mm² (#25AWG) | 0.178mm² (#25AWG) | 0.932mm² (#18AWG) |
|
| Insulation | Ov. Dia. (mm) |
1.35Ø (0.053") | 1.35Ø (0.053") | 1.36Ø (0.054") | 1.36Ø (0.054") | 2.8Ø (0.110") |
| Material | CPP | XLPE | XLPE | XLPE | CPP | |
| Colors | Red/Light green | Red/Clear | Red/Clear | Red/Clear | Red/White | |
| Mono- filament Filler |
Ov. Dia. (mm) |
- | - | - | 1.87Ø (0.0736") | |
| Material | Cotton | LDPE (Clear) | ||||
| Drain Wire | Details | 7/0.20A (7×#32AWG) | - | 7/0.18A (7×#33AWG) | 7/0.18A (7×#33AWG) | 20/0.18TA (20×#33AWG) |
| Size | 0.22mm² (#24AWG) | - | 0.178mm² (#25AWG) | 0.178mm² (#25AWG) | 0.509mm² (#21AWG) |
|
| Served Shield | Approx. 79/0.10A (Approx. 79/#39AWG) |
Approx. 98/0.10A (Approx. 98/#39AWG) |
Approx. 60/0.12A (Approx. 60/#37AWG) |
Approx. 60/0.12A (Approx. 60/#37AWG) |
Approx. 100/0.18A (Approx. 100/#33AWG) |
|
| Ov. Jacket | Ov. Dia. (mm) |
3.2Ø (0.126"Ø) | 4.8Ø (0.189"Ø) | 5.0±0.3Ø (0.197± 0.0118"Ø) |
5.0±0.3Ø (0.197± 0.0118"Ø) |
7.8±0.5Ø (0.307± 0.0197"Ø) |
| Material | PVC | PVC | Flexible PVC | Flexible PVC | PVC | |
| Color | Black/Gray | Black | Black / Blue | Black | Black | |
| Roll Sizes | 50m (164 Ft) / 100m (328Ft) / 200m (656Ft) | 77m (250 Ft) / 305m (1,000Ft) | 300m (983Ft) | |||
| Weight | 2kg/100m Roll | 3kg/100m Roll | 3.3kg/100m Roll | 2.6kg/250m Roll | 27kg/300m | |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | W3159 | W3228 | W3080 | |
| DC Resistance at 20°C | Inner Cond. | 0.081Ω/m(0.0247Ω/Ft) | 0.1Ω/m(0.031Ω/Ft) | 0.11Ω/m(0.034Ω/Ft) |
| Shield Cond. | 0.024Ω/m(0.0073Ω/Ft) | 0.025Ω/m(0.0076Ω/Ft) | 0.028Ω/m(0.0085Ω/Ft) | |
| Capacitance at 1kHz, 20°C (effective capacitance value between inner twin) |
46pF/m (14pF/Ft) |
53pF/m (16pF/Ft) |
46pF/m (14pF/Ft) |
|
| Inductance | 0.8µH/m (0.24µH/Ft) | 0.8µH/m (0.24µH/Ft) | 1.0µH/m (0.31µH/Ft) | |
| Characteristic Imperdance | 110Ω±10% | 110Ω±5% | 110Ω±5% | |
| Attenuation (6MHz) | 0.065dB/m (0.020db/Ft) |
0.069dB/m (0.021db/Ft) |
0.069dB/m (0.021db/Ft) |
|
| Phase Constant (6MHz) | 0.17rad/m | 0.20rad/m | 0.20rad/m | |
| Electrostatic Noise* | 50mV Max. | |||
| Electromagnetic Noise at 10kHz* | 2.0mV Max. | |||
| Microphonics** | 60mV | 40mV Max. | 40mV Max. | |
| Voltage Breakdown | Must withstand at DC 500V/15sec, 20°C | |||
| Insulation Resistance | 10000 MΩ × m Min. at DC 250V, 20°C | |||
| Flex Life* | 2,900 cycles | 33,000 cycles | 10,000 cycles | |
| Tensile Strength | 303N | 441N | 343N | |
| Emigration | Non-Emigrant to ABS resin | |||
| Applicable Temperature | -20°C‾ +60°C(-4°F‾ +140°F) | |||
| Standard | AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 |
AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 UL AWM 2623, 30V, 80°C, VW-1 |
AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 |
|
* Using standard testing method of Mogami Wire & Cable Corp.
W3080
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Digital Audio & DMX Lighting |
| Cable Brand | Mogami |
| Cable Conductor | 0.178mm² (#25AWG) |
| Cable Resistance | 0.11Ω/m(0.034Ω/Ft) |
| Cable Capacitance | 46pF/m |
| Cable Screening | 0.178mm² (#25AWG) Drain Wire + Lapped Screen Approx. 60/#37AWG |
| Overall Diameter | 5mm |
| Cable Jacket | Black Flexible PVC |
