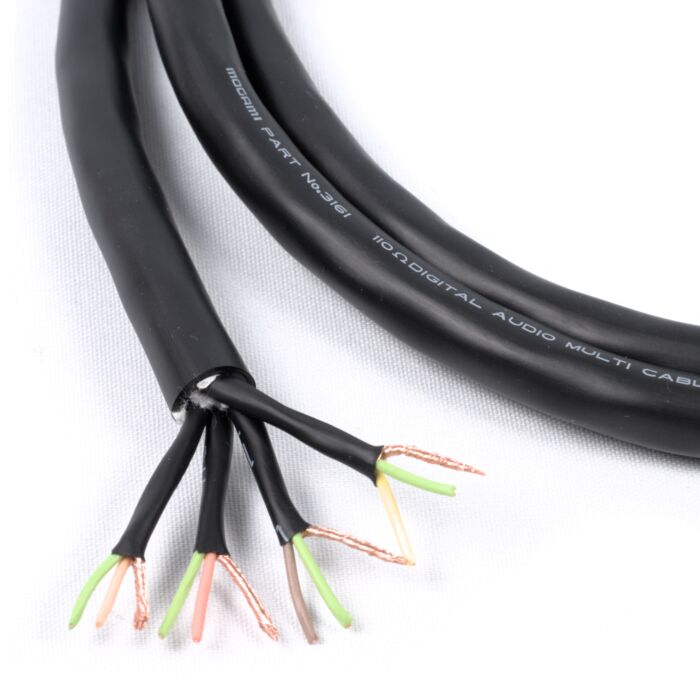

Mogami 4 Pair Multicore 3161. Black 110Ω AES/EBU DIGITAL AUDIO Snake Cables
As low as
£1.79
In stock
SKU
MOGAMI.MC.04.3161
Multibuy discounts calculated at checkout
Mogami 4 Pair Multicore 3161. Black 110Ω AES/EBU DIGITAL AUDIO Snake Cables
Part No. SPECS
| Part No. | Nos. of Cores. | O.D. (Approx. mm) | Jacket Thickness (Approx. mm) | Weight (Kg/100m)(Kg/328Ft) | Maximum Length available |
| W3160 | 2-CR | 9.0 (0.354") | 1.0 (0.039") | 8 | 305m (1,000Ft) |
| W3161 | 4-CR | 10.5 (0.413") | 1.2 (0.047") | 14 | |
| W3162 | 8-CR | 13.8 (0.543") | 1.4 (0.055") | 23 | |
| W3163 | 12-CR | 17.0 (0.669") | 1.6 (0.063") | 30 |
CABLE CORE SPECS
| Configuration |  |
| Conductor | 7/0.20A (0.22mm²) #24AWG (7×#32AWG) |
| Insulation | 1.35ØCPP (Cellular polypropylene) (0.053") |
| Drain Wire | 7/0.20A (Exactly same as conductor) |
| Shield | Approx. 79/0.10A Served (Spiral) Shield |
| Jacket (covering) | 3.2Ø Flexible PVC (0.126"Ø) |
| Identification | Similar to analog snake cable |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| DC Resistance at 20°C | Inner Pair Cond. | 0.081Ω/m(0.0247Ω/Ft) |
| Shield | 0.024Ω/m(0.0073Ω/Ft) | |
| Capacitance at 1kHz, 20°C (effective capacitance value between inner twin) |
46pF/m(14pF/Ft) | |
| Inductance | 0.8µH/m (0.24µH/Ft) | |
| Characteristic Imperdance | 110Ω±10% | |
| Attenuation (6MHz) | 0.065dB/m (0.020db/Ft) | |
| Phase Constant (6MHz) | 0.17rad/m | |
| Electrostatic Noise* | 5.0mV Max. | |
| Electromagnetic Noise at 10kHz* | 2.0mV Max. | |
| Microphonics* | 60mV | |
| Voltage Breakdown | Must withstand at DC 500V/15sec | |
| Insulation Resistance at DC 125V, 20°C | 10000 MΩ × m Min. | |
| Tensile Strength of one Core | 303N | |
| Emigration | Non-Emigrant to ABS resin | |
| Applicable Temperature | -20°C‾ +70°C(-4°F‾ +158°F) | |
| Standard | AES3-100X(ANSI S.4.40-199X) EBU Rech. 3250-E CEI/IEC 958/CCIR Rec. 647 UL13 CL2X 60°C / UL20002 AWM 30V 60°C VW-1 |
|
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Analogue & Digital Multicore |
| Cable Brand | Mogami |
| Multicore Core Count | 4 Way |
