Midi Synth Lead. Type A to Type B Mini Jack Crossover Cable. 3.5mm Out to In
As low as
£12.93
In stock
SKU
35TRS.RA-VDMI.PP.PRNT-NYS231L
Multibuy discounts calculated at checkout
This range of cables takes a Type A or Type B Output and converts it to Type B or Type A Input. They are bi-directional so it does not matter which they are connected.
This range of cables takes a Type A or Type B Output and converts it to Type B or Type A Input. They are bi-directional so it does not matter which they are connected.
As time has gone by Synths have become increasingly complex and more compact, yet the Midi protocol remains the same. To save space for more fun stuff modern devices are now using 3.5mm mini jack sockets to send Midi commands.
This range of cables takes a Type A or Type B Output and converts it to Type B or Type A Input. They are bi-directional so it does not matter which they are connected.
*Cables come labelled with ‘Crossover’ to avoid confusion with standard aux cables

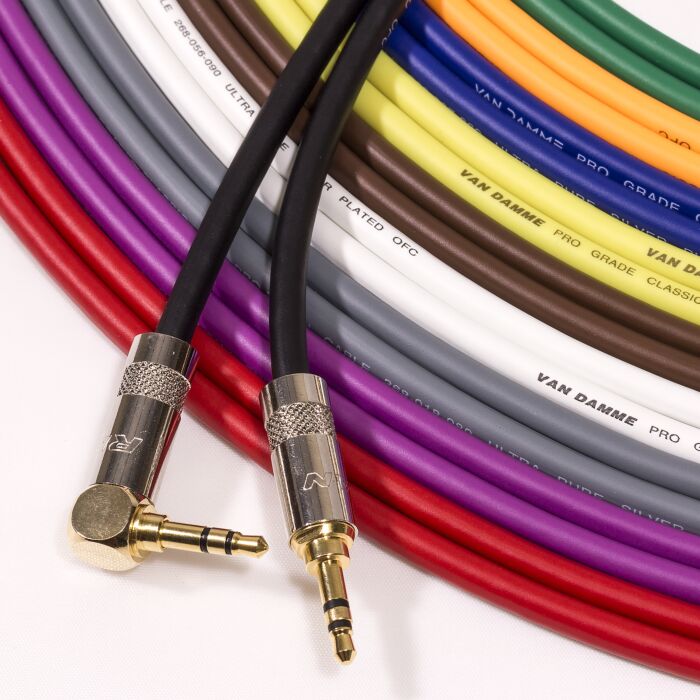

- 3.5mm Male Mini jack (straight to angled)
- Van Damme Pro-Grade XKE patch cable, soft and flexible
- Crossover wiring, Tip to Ring, Ring to Tip
- Manufactured with a 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen pF/m 95 nominal |
| Cable Resistance | Conductor Ohm/Km <85 |
| Cable Conductor | (24awg) Bare silver plated UPOFC wire, Stranding 7 x 0.10mm. Bare UPOFC wire, Stranding 21 x 0.10mm |
| Cable Screening | 96 x 0.10mm braided tinned oxygen free copper wire. Coverage 95% |
| Cable Jacket | Flexible PVC/Neoprene composite |
| Overall Diameter | 4.85mm ±0.10 |
| Cable Brand | designacable |
| Application | Tour & Studio Grade |
| Contact Material | Gold Plated |
| Number of Contacts | 3 Pole |
