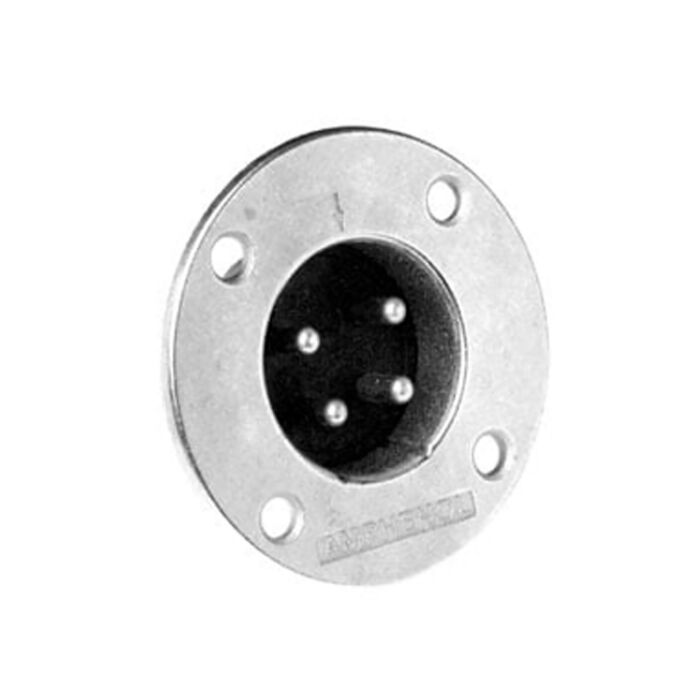

The EP Series has set the standard in high performance speaker connectors, by incorporating a rugged zinc diecast shell to give it maximum durability when used in demanding situations. The EP cable connector cable flex relief design minimises cable bend stress at point of entry into the connector housing, it also features a quick release vibration resistant latch lock. The Amphenol EP & AP series are completely interminable.

Technical Specifications

Positions - 6

Current Carrying Capacity - 20A

Housing Material - Diecast Zinc Alloy

Finish - Nickel

Contact Type - Machined

IP Rating - IP40

Termination - Solder

Max Wire Gauge - 12AWG

Operating Temperature - -25°C to +75°C (-13°F to +167°F)

Mating Cycles - 1000

Flammability Rating - UL94V-0

Environmental - Complies with EU RoHS 2 Directive 2011/65/EU

Application(s) - Audio & Lighting

More Information
Delivery Speed	Next Day delivery available if 'In Stock'
Mounting Method	Panel Mount - Solder
Contact Material	Silver Plated
Number of Contacts	6 Pole
Pack Quantity	Pack of 1
