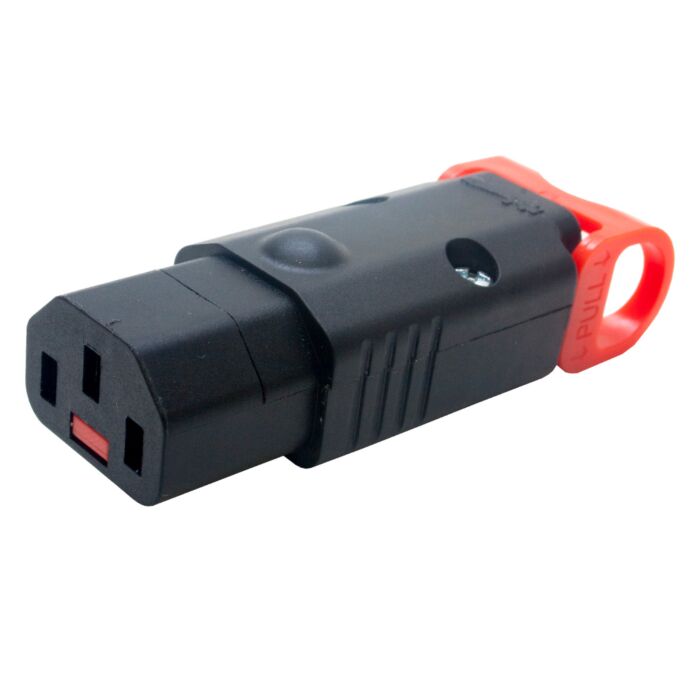

Locking C13 IEC. Female Cable Mount Rewireable Kettle Plug. IL13+ Rewireable IEC Lock

IEC C13 Rewireable Connector for individual Power Cord with Locking System

Guards against accidental disconnection. Requires no other equipment or special inlets to secure it. Rewireable - offering total flexibility when assembling cables. Fits any Schaffner IEC C14 inlet Filter. Can be retrofitted Various power line plugs for international usage LSZH - Low smoke zero halogen.

The locking system has a tensile force of typical 300N. It is recommended to use it with flange mount filters. For details refer to our Application Note "Using IEC Lock Power Cords with IEC Inlets and Filters".

Schaffner power connector with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet. No exchange or modification of the IEC inlet or IEC inlet filter system is needed. Easy retrofit for all electronic equipment’s and devices.

Features and benefits

• Power cord connector with locking system for IEC inlets
• Suitable for use with any C14 IEC inlet
• Fits the complete Schaffner IEC inlet filter program with C14 IEC inlet
• Max. pin temperature 70°C
• Typical applications; Data centres Industrial Equipment Medical devices In-vitro diagnostic devices Broadcasting stations Mobile applications

Technical Spec

Part number - IL13+ Rewireable IEC Lock

Maximum continuous operating voltage - 250 VAC, 50/60 Hz

Rated currents - 10 A max (Europe)/ 15 A max/(USA)

High potential test voltage –

• P–> PE 2000 VAC (1 min 50 Hz)
• P –> N 2000 VAC (1 min 50 Hz)

Protection category - IP 20 according IEC 60529

Temperature range (operation and storage) - -25°C to +70°C

Cable size -

• 3C x 0.75 mm2
• 3C x 1.00 mm2
• 3C x 1.25 mm2
• 3C x 1.50 mm2
• 3C x 14-18awg

Test standard KEMA-KEUR:

Certified: EN 60320-1:2001+A1:2007 UL 60320-1/ CSA C22.2 No. 60320-1

Approvals

Patents: EU Patent No. EP14594121
