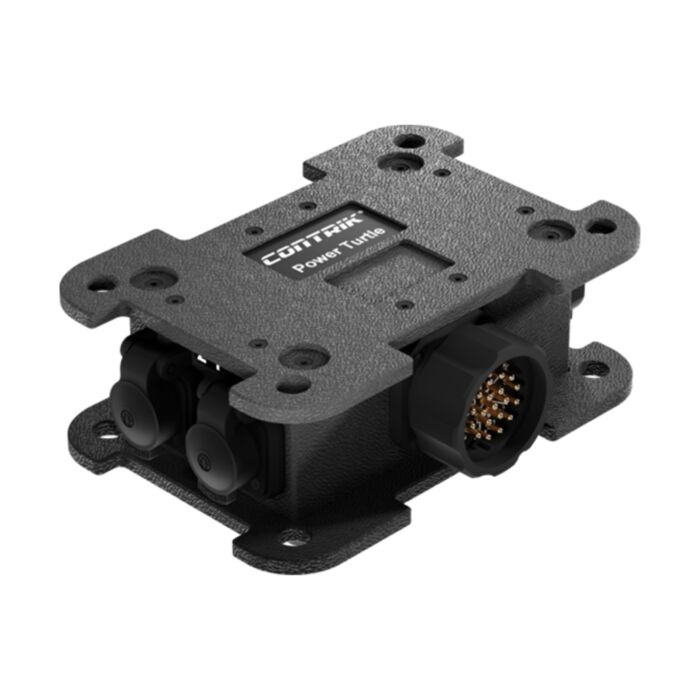

IP65 Power Turtle Xtreme Outdoor - Socapex in. 6 x True1 Out
£455.70
Available for Pre-Order
SKU
PreMade_CPTM-S1-T6
Multibuy discounts calculated at checkout
- Buy 5 for £432.92 each and save 5%
- Buy 10 for £410.13 each and save 10%
- Buy 15 for £387.35 each and save 15%
- Buy 20 for £364.56 each and save 20%
IN: 11x Socapex 419 – OUT: 6x powerCON® TRUE1® TOP
Power Turtle Multicore are extremely rugged compact distribution boxes which allow significant reduction of the cabling volume, effort and cost due to the multicore input. It is ideally suited for outdoor usage and demanding mobile applications.
IN: 11x Socapex 419 – OUT: 6x powerCON® TRUE1® TOP
Power Turtle Multicore are extremely rugged compact distribution boxes which allow significant reduction of the cabling volume, effort and cost due to the multicore input. It is ideally suited for outdoor usage and demanding mobile applications.
Features and Benefits
- Reduction of cabling volume and effort due to Socapex 419 compatible multipin connector. And Even more reduction of cabling due to the versions with 12x Outs
- High durability and protection: Rugged Easylen® housing with high IK, IP65 with Socapex 419 in mated condition, self-closing caps, lateral connector arrangement, flame retardant and non-conductive housing material
- Very compact design: flat design, lateral connector arrangement, applications with restricted space.
- Easy transport and handling: stackable with other Power Turtles, lightweight, fully lockable
- Versatile mounting options: pegs, suspension, truss clamp
Markets and Application
- Markets: Professional video wall / lighting / audio
- Mobile application: Festivals, live events
- Semi-permanent applications: Theaters, studios
Technical Information
Product
- Input device: 1x Socapex 419 compatible (6 channels)
- Output device: 6x powerCON® TRUE1® TOP with self-closing caps
- Daisy chaining: powerCON® TRUE1® TOP with self-closing caps
Electrical
- Contact resistance / protection class: Protection class II
- Dielectric strength: 0,5 kV / mm
- Rated voltage: 250V AC
- Rated Current: 16A
- Number of electrical contacts: 2 + PE
- Phases: single-phase
Mechanical
- Dimensions: 225 x 166 x 87mm
- Weight: 1,4 kg
- Conductor cross section: 2,08 mm²
- Mounting options: Truss clamp (M10), mounting wholes for pegging or suspension
- Type of construction: Stackable
Material
- Housing: Easylen
- Color: black
Environmental
- Flammability acc. to UL 94: V-2
- Protection class: IP65 with Socapex 419 in mated condition
- Temperature range: -25 °C bis +40 °C
