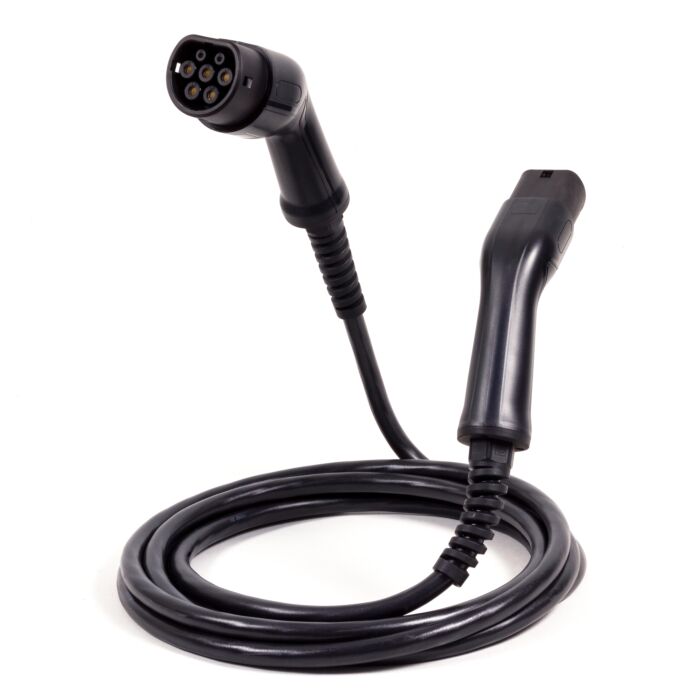

Industrial Type 2 EV Charging Cable

N.B. Please note that all cables over 45m will need to be confirmed and are made to order, we do not keep these on the shelf. As max charging amperage will be dropped to 16Amps, to allow for voltage drop over the length of the cable. Please email [email protected] before placing your order.

This is our most versatile cable. It is compatible with all Type 2, Mode 3 charger-points and all Electric Vehicles with a Type 2 Input connection. If you are travelling regularly then this is the cable of choice. It can charge your vehicle from 22kw chargers, commonly found at motorway service stations, and can also charge your vehicle from domestic single phase 7.4kw and 3.6kw charge-points. Covering all charging scenarios from one seriously tough cable.

Features

• Made in Nottingham UK
• Choose from 25cm to 100m cable length
• Compatible with integrated car & chargepoint locking mechanisms
• Compatable with all EVs with a Type 2 input connection
• 3 Phase up to 32amps (22kW) @ 400v/415v
• Single Phase up to 32amps (7.4kW) @ 230v/240v
• Flexible and UV stable cable
• Integral cable strain relief for maximum durability
• Resin filled connector eliminates water ingress and offers unrivalled cable retention
• Cable and connector can withstand being run over
• Complimentary canvas carry bag included

Standards

• Type 2 Plug (charge-point). According to IEC 62196-2
• Type 2 Socket (car). According to IEC 62196-2
• H07BZ5-F Cable. 5core 6mm² (L1,L2,L3,N,E) + 0.5 mm² (CP). According to IEC 62893
• Assembly and Testing. According to IEC 62196-1
• IP Protection Class: IP55 when connected
• IMDS registered
• UKCA & CE Certified

Technical Specification

• Connector housing: Thermoplastic
• Max 32amp Rated (22kW)
• Operating Temperature: -30℃ to +50℃
• Cable and connector can be run over, tested to 2500kg (2.5 tons) on concrete with only superficial damage
