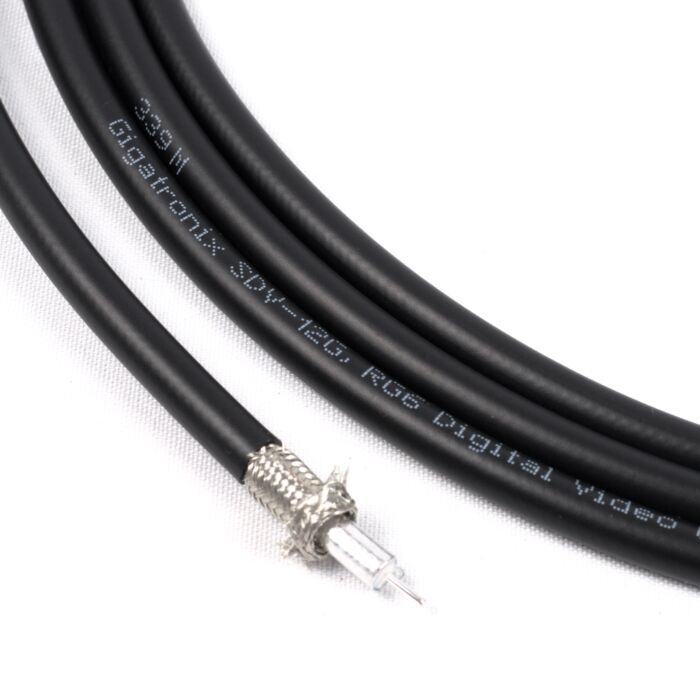

Gigatronix 12G-SDI, 4K, RG6 HD-SDI Digital Video Coaxial Cable
As low as
£0.74
In stock
SKU
CABLE.SDI.GIGATRONIX.12G
Multibuy discounts calculated at checkout
An RG6 UHD 75 ohm 12G SDI (Serial Digital Interface) high-bandwidth cable designed to carry high-definition video signals, especially in broadcast and professional video applications. It supports 12Gbps transmission of uncompressed 4K UHD video over a single cable and is backward compatible with all lower SDI standards like 3G-SDI and 6G-SDI.
The cable is constructed using a solid silver plated copper core, low loss foam PE dielectric and a double shielding foil and braid combination. This provides excellent protection from signal interference and ensures high-quality video transmission. The FR-PVC jacket is certified to CPR rating Eca.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Coaxial - 50ohm, 75ohm, SDI |
| Cable Brand | Un-Branded |
| Cable Conductor | Silver Plated Copper |
| Cable Resistance | 75 ohms |
| Cable Capacitance | 52 pF/m |
| Cable Screening | Tinned Copper |
| Overall Diameter | 6.95mm |
| Cable Jacket | PVC |
