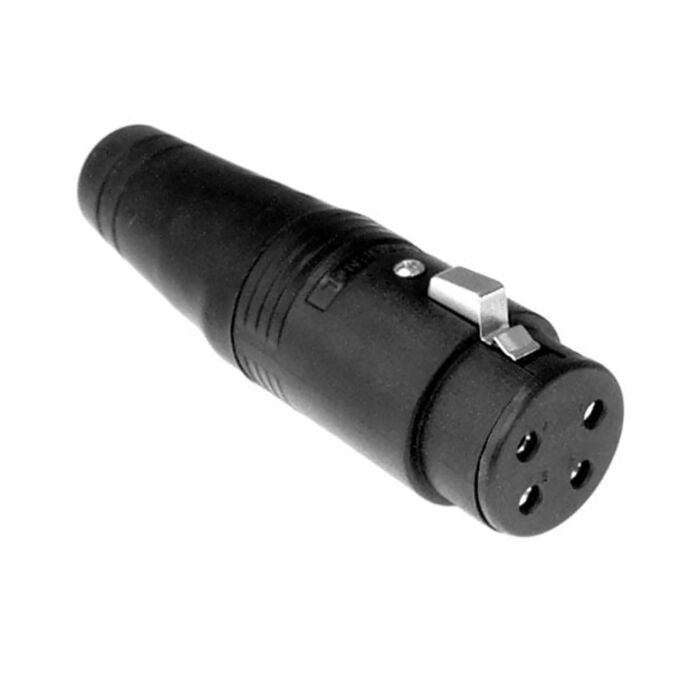

The AP Series Shell is manufactured from tough, durable thermoplastic, and ideal for fixed indoor installations. Both the EP and AP Series utilise the same contact and insulator components. It also features a quick release vibration resistant latch lock. The Amphenol EP & AP series are completely interminable.

Technical Specifications

Positions - 6

Current Carrying Capacity - 20A

Housing Material - Modified PPE Resin

Finish - Black

IP Rating - IP40

Termination - Solder

Max Wire Gauge - 12AWG

Operating Temperature - -25°C to +75°C (-13°F to +167°F)

Mating Cycles - 1000

Flammability Rating - UL94V-0

Environmental - Complies with EU RoHS 2 Directive 2011/65/EU

Application(s) - Audio & Lighting

More Information
Delivery Speed	Next Day delivery available if 'In Stock'
Mounting Method	Cable Mount - Solder
Contact Material	Silver Plated
Number of Contacts	5 Pole
Pack Quantity	Pack of 1
