DMX Adapter Turnaround Cable. 3 Pin to 5 Pin XLR Lead
£10.35
In stock
We have 20 items in stock!
SKU
SCF3-VD.DMX.BK.0010-SCM5
Multibuy discounts calculated at checkout

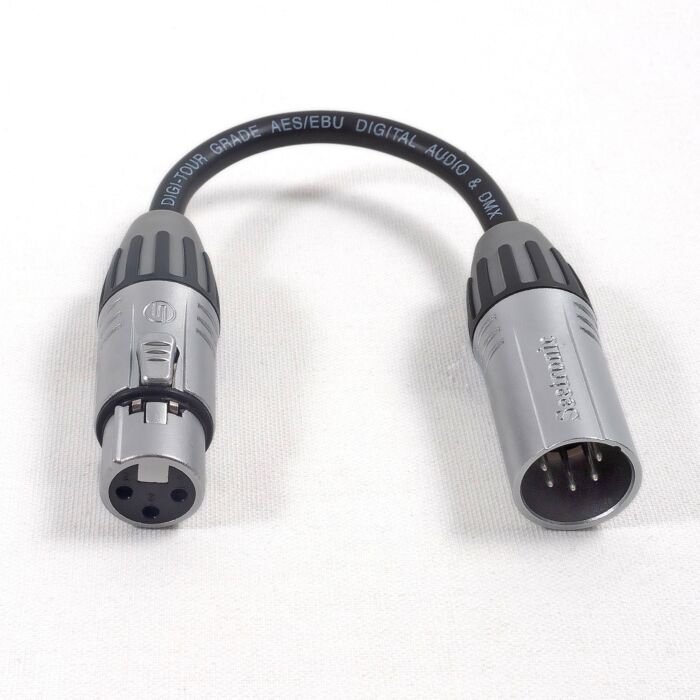

DMX adapter cable to convert 3pin Female XLR connectors to 5pin Male XLR connectors, for use with DMX lighting and data transfer.
DMX adapter cable to convert 3pin Female XLR connectors to 5pin Male XLR connectors, for use with DMX lighting and data transfer.
A very handy piece of kit to have in your tool box. These are wired straight through on pins 1/2/3.
We use Seetronic chromium plated classic looking XLR connectors with Seetronic’s rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing.
- Made with Van Damme Digi-Tour DMX 2 Core Cable - 268-482-000
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen - 100 pF/m |
| Cable Resistance | Impedance - 110 ± 20% Ohms |
| Cable Conductor | 7 x 0.16 mm bare ultra-pure oxygen-free copper |
| Cable Screening | 72 x 0.10 mm lapped bare copper > 90% coverage |
| Cable Jacket | Material Flexible PVC composite |
| Overall Diameter | 6.20 ± 0.15 mm |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
