Free shipping
For all orders over £75

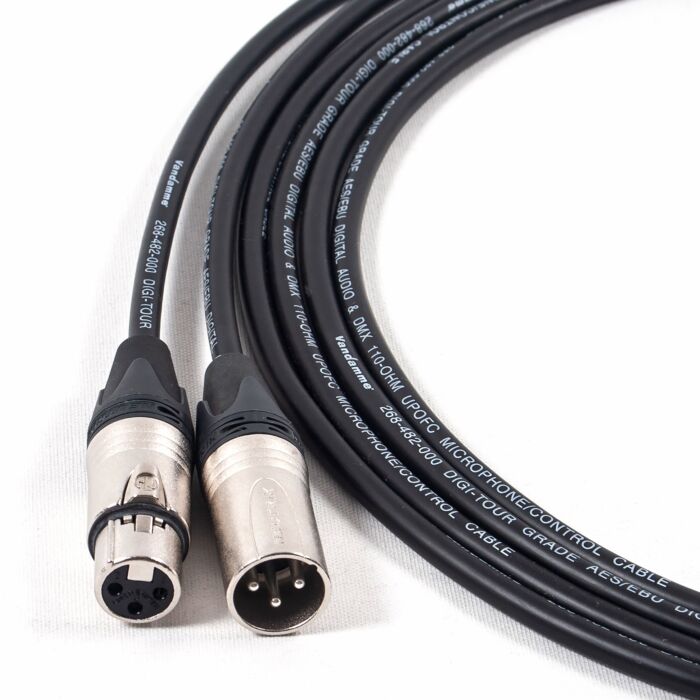

Van Damme 3 Pin Tourgrade DMX Lighting XLR Lead. Flexible
As low as
£15.77
In stock
SKU
NC3FXX-VDDMXBK-NC3MXX
Multibuy discounts calculated at checkout
High quality cable for the transmission of 110ohm digital signals, DMX and AES/EBU. Excellent screening provides optimum protection form Electrical and magnetic interference.
High quality cable for the transmission of 110ohm digital signals, DMX and AES/EBU. Excellent screening provides optimum protection form Electrical and magnetic interference.
Van Damme Digi-Tour-Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances. Also suitable for balanced analogue audio use.
This cable has the same feel as the Tour-Grade microphone cable. Due to the flexible construction the Impedance of these cables varies by (+/-) 20%. We recommend this cable for patch leads and short runs of up 25m. If you require long runs then please see the 'Smart Control' range of cables that can faithfully transfer AES and DMX signals up to 300m.
This coupled with the industry standard 3 Pin XLRs from Neutrik make for a very hard wearing lead.
- Compatible with Line 6 L6 Digital LINK Cable and Balanced audio connections
- Made with Van Damme Digi-Tour DMX 2 Core Cable - 268-482-000
- Neutrik NC3FXX and NC3MXX connectors
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen - 100 pF/m |
| Cable Resistance | Impedance - 110 ± 20% Ohms |
| Cable Conductor | 7 x 0.16 mm bare ultra-pure oxygen-free copper |
| Cable Screening | 72 x 0.10 mm lapped bare copper > 90% coverage |
| Cable Jacket | Flexible PVC composite |
| Overall Diameter | 6.20 ± 0.15 mm |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
