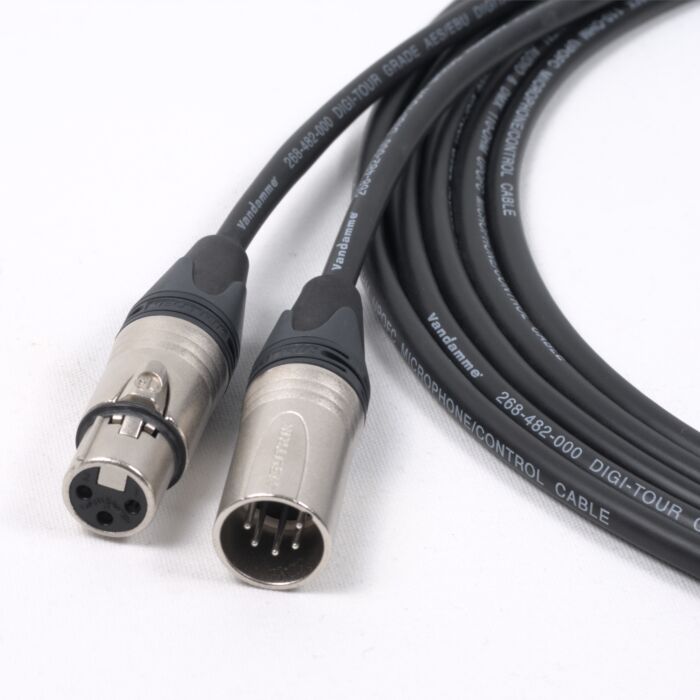

DMX Turn Around Cables. 3 Pin Female to 5 Pin Male XLR Lead.
As low as
£19.32
In stock
SKU
NC3FXX-VDDMXBK-NC5MXX
Multibuy discounts calculated at checkout
Van Damme Digi-Tour Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances.
Van Damme Digi-Tour Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances.
These cables adapt DMX connections from 3 Pin to 5 Pin, and vice-versa. A very handy piece of kit to have in your tool box. >Terminated with industry standard XLRs from Neutrik. These are wired straight through on pins 1/2/3.
- Made with Van Damme Digi-Tour DMX 2 Core Cable - 268-482-000
- Neutrik NC3FXX and NC5MXX connectors
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen - 100 pF/m |
| Cable Resistance | Impedance - 110 ± 20% Ohms |
| Cable Conductor | 7 x 0.16 mm bare ultra-pure oxygen-free copper |
| Cable Screening | 72 x 0.10 mm lapped bare copper > 90% coverage |
| Cable Jacket | Material Flexible PVC composite |
| Overall Diameter | 6.20 ± 0.15 mm |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
