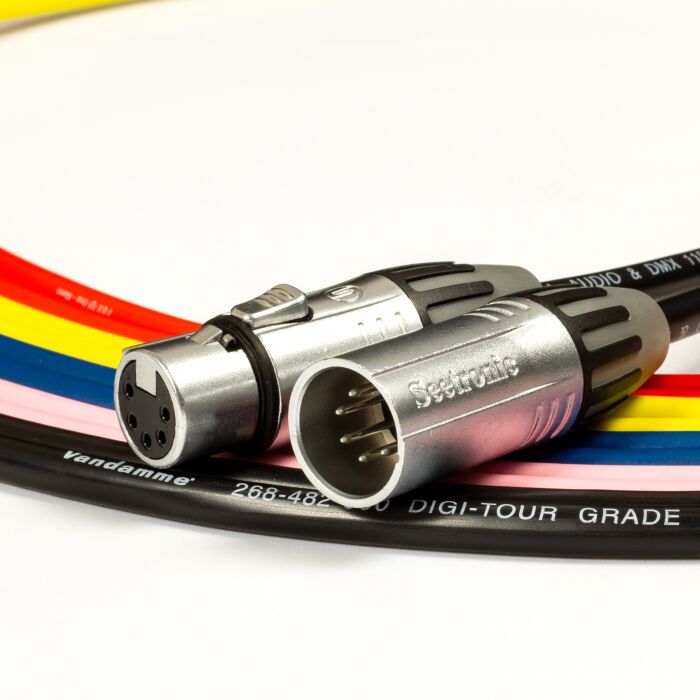

Digital AES & DMX Lead. 5 Pin. Female XLR to Male XLR 110ohm

Digital AES and DMX Lead. 5 Pin. Van Damme Cable, Female XLR to Male XLR 110ohm

Van Damme Digi-Tour Grade AES/EBU microphone and DMX cable is a black jacketed version of the Van Damme Green Series 6.20mm OD AES microphone cable 268-402-050. Low capacitance and stable characteristic impedance ensure that signals remain error and jitter free over long distances. Also suitable for balanced analogue audio use.

5 pin XLR cable with pins 1, 2, 3 wired only. 4 and 5 are not used in a DMX universe so are not required. These are commonly used for connecting DMX lighting to DMX controllers.

The classic looking XLR connectors are by Seetronic. They offer a rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing. Simplicity is key when it comes to connector assembly, these have 4 integral parts that lock together when assembled and squeeze down on to the cable to ensure a rock-solid termination that will not come un-stuck without disassembly. Seetronic represent excellent value for money.

Cable Spec

• Conductor Material: Bare ultra pure oxygen free copper wire
• Insulation Material: Foam skin polyolefin
• Screen Type: 24μm Aluminium/polyester foil >150% coverage
• Capacitance (Core/core): 50pF/m nominal
• Impedance: 110Ohms ±20%

Connector Spec

• Rated current per contact) 7.5A
• Locking device: Latch lock
• Boot: Polyurethane
• Contacts: Cu alloy
• Contact plating: Sn
• Insert: Polyamide (PA 66 +30 % GF)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Cr
• Protection class: IP40
• Temperature range: -30℃to +80℃
