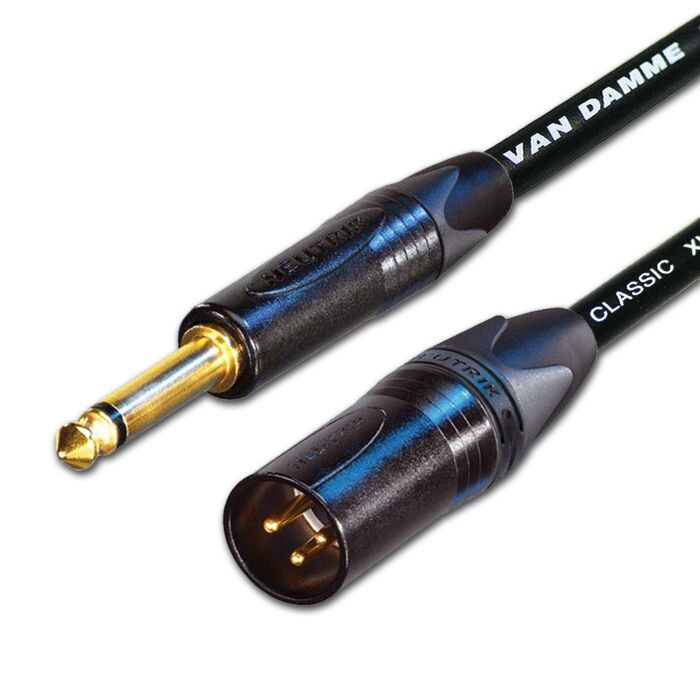

Male XLR to Jack Cable. Long Mono Jack lead. Unbalanced Van Damme Neutrik Guitar
Multibuy discounts calculated at checkout
Unbalanced Male XLR to Male 6.35mm Mono Jack for use where a balanced signal cannot be achieved. For example when connecting your Guitar or Instrument to a Di Box, directly to a mixing desk or directly to effects. Problems with ground loops and hums can arise using balanced leads in unbalanced situations, so this range of cables cures these problems. They are also a snip of the price compared to their balanced sisters.
Unbalanced Male XLR to Male 6.35mm Mono Jack for use where a balanced signal cannot be achieved. For example when connecting your Guitar or Instrument to a Di Box, directly to a mixing desk or directly to effects. Problems with ground loops and hums can arise using balanced leads in unbalanced situations, so this range of cables cures these problems. They are also a snip of the price compared to their balanced sisters.
Unbalanced Male XLR to Male 6.35mm Mono Jack for use where a balanced signal cannot be achieved. For example when connecting your Guitar or Instrument to a Di Box, directly to a mixing desk or directly to effects. Problems with ground loops and hums can arise using balanced leads in unbalanced situations, so this range of cables cures these problems. They are also a snip of the price compared to their balanced sisters.
Van Damme cable is super flexible with an emphasis on durability; it has a spiral shield to reject unwanted noise and 7 strands of UPOFC to carry the signal. Coupled with the Neutrik silver connectors these are very hard wearing leads.
These leads are cleverly wired to improve the signal quality when connecting an instrument to a balanced input. Our method is tried and tested by studios and musicians around the world, including some big names such as 'Vibey Studios' in France. To do this we use a 2 core and screen cable, and wire the unused pin inside the XLR to the ground inside the jack. Its very simple, and very effective! Should you require any other wiring to suit your requirements, please ask
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | Core to core pF/m 56 nominal |
Cable Resistance | Conductor Ohm/Km <85 |
Cable Conductor | Bare Silver Plated UPOFC wire; 7 x 0.10mm strands + Bare UPOFC wire; 21 x 0.10mm strands |
Cable Screening | - |
Cable Jacket | Flexible PVC/Neoprene composite. Average thickness. 1.40mm Overall diameter 6.5mm |
Overall Diameter | - |
Cable Brand | Van Damme |
Application | Tour & Studio Grade |
Contact Material | Gold Plated |
Number of Contacts | 3 Pole |
