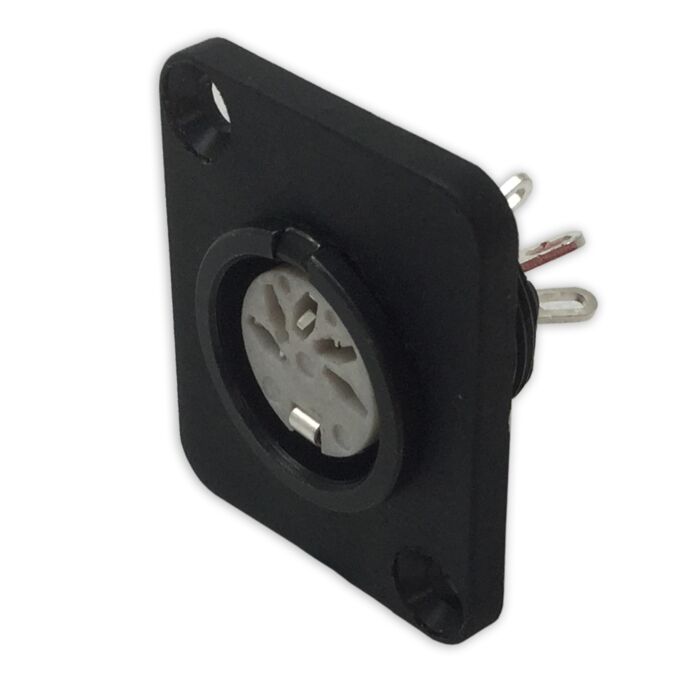

Deltron 5 Pin DIN Chassis Panel Mount. Female Connector. 650-0500. D-Type.
£11.92
In stock
We have 22 items in stock!
SKU
CHASSIS_DEL.5.DTYPE.PANEL
Multibuy discounts calculated at checkout
- Buy 5 for £11.32 each and save 5%
- Buy 10 for £10.73 each and save 10%
- Buy 15 for £10.13 each and save 15%
- Buy 20 for £9.54 each and save 20%
A range of professional chassis mounting Din sockets. Available in 5, 7 and 8 pin variations. The circular sockets are mounted into Neutrik DBL dummy plates so can be mounted on standard d-type 19" panels, stage boxs and reels.
A range of professional chassis mounting Din sockets. Available in 5, 7 and 8 pin variations. The circular sockets are mounted into Neutrik DBL dummy plates so can be mounted on standard d-type 19" panels, stage boxs and reels.
Technical Info
- Part Number - 650-0500
- Neutrik D type Panel - DBA-BL
- Housing – Brass
- Finish – Black
- Contacts - Silver
- Pin Configuration - 5 Pin 45°
- Temperature Range °C – -25°C to 70°C
- Rated Voltage (V) – 34 V ac
- Current Rating 40°C - 2 Amp
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
| Pack Quantity | Pack of 1 |
