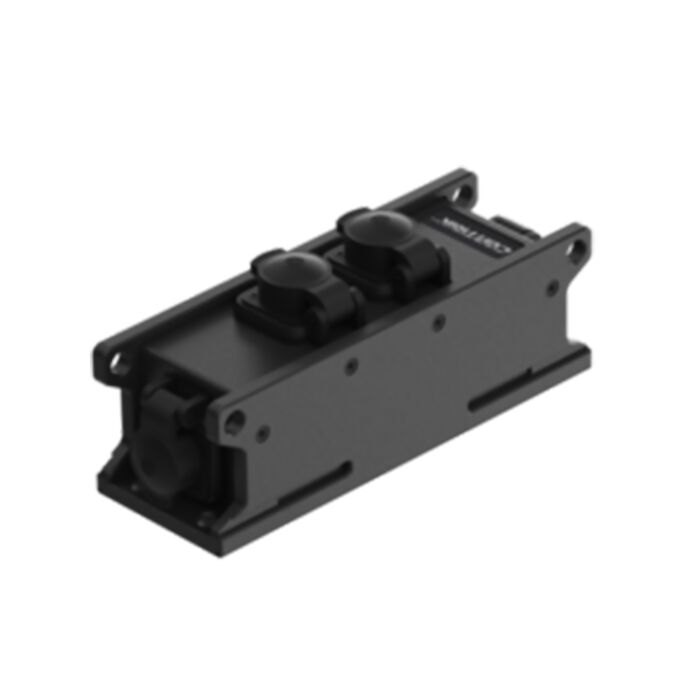

CPVT Power Strips with Three TRUE1® Powercon and IP65 powerBOX
Multibuy discounts calculated at checkout
- Buy 5 for £152.86 each and save 5%
- Buy 10 for £144.82 each and save 10%
- Buy 15 for £136.77 each and save 15%
- Buy 20 for £128.73 each and save 20%
Power Strip Xtreme Outdoor. 1x powerCON TRUE1 IN – 3x powerCON® TRUE1® TOP OUT
Power Strip Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 1x powerCON® TRUE1® TOP In and up to 6x powerCON® TRUE1® TOP Out.
Power Strip Xtreme Outdoor. 1x powerCON TRUE1 IN – 3x powerCON® TRUE1® TOP OUT
Power Strip Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 1x powerCON® TRUE1® TOP In and up to 6x powerCON® TRUE1® TOP Out.
Features and Benefits
- Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
- Flame retardant (UL94-V2) and non-conductive housing material
- High outdoor protection (IP65, IK, ..)
- Light weight, compact and stackable housing design
- Versatile mounting options
Market and Application
- Markets: Professional video wall / lighting / audio
- Mobile application: Festivals, live events
- Semi-permanent applications: Theaters, studios
Technical Information
Product
- Input device: 1x powerCON® TRUE1® TOP with self-closing caps
- Output device: 3x powerCON® TRUE1® TOP with self-closing caps
- Daisy chaining: 1x powerCON® TRUE1® TOP with self-closing caps
Electrical
- Contact resistance / protection class: Protection class II
- Dielectric strength: 0.5 kV / mm
- Rated voltage: 250V AC
- Rated Current: 16A (USA: 20A)
- Number of electrical contacts: 2 + PE
- Phases: single-phase
Mechanical
- Lifetime: > 5000 Mating cycles per connector
- Dimensions: 220 x 91.2 x 77 mm
- Conductor cross section: 2.08 mm²
- Weight: 0.65 kg
- Mounting options: Truss clip, mounting wholes for pegging or suspension
Material
- Housing: Easylen
- Color: black
Environmental
- Standards compatibility: UL94-V2
- Protection class: IP65
- Temperature range: -25 °C bis +70°C
