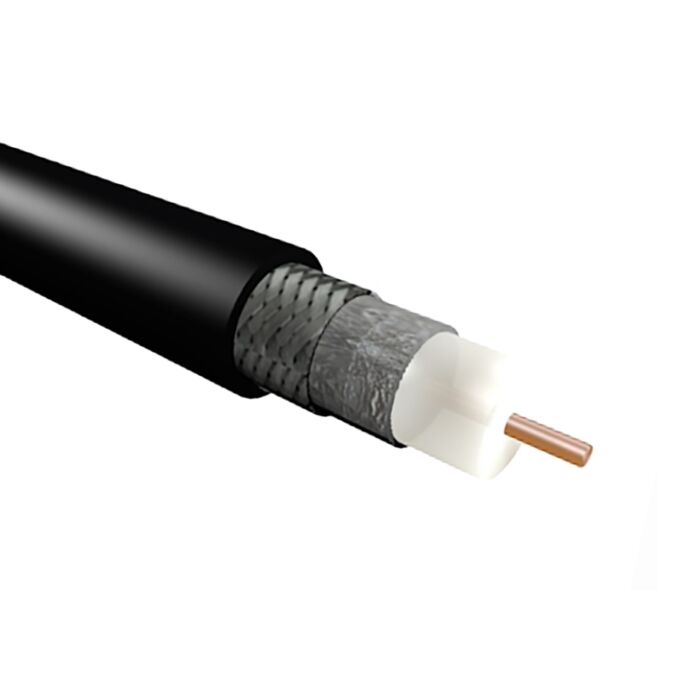

Belden 1694A - 75 Ohm SDI Coax. RG-6. 18 AWG - Solid Bare Copper Conductor
Multibuy discounts calculated at checkout
Original Belden 1694a High-Performance HD coaxial cable.
Based around the industry standard RG6/U, at 7mm overall diameter this is a heavy-duty cable. It has a solid centre conductor so stiffer than stranded versions but offers high performance over longer lengths. Precision construction ensures trouble free performance of 4K UHD as well as being backwards compatible with HDTV, 3G-SDI, HD-SDI signals (SMPTE 424M & SMPTE 292M), SDI and analogue video. Distances vary so please check out our guide below.
We recomend Neutrik NBNC75BTU11X UHD BNC connectors for maximum performance.
- RG6/U. 7mm Overall Diameter
- Transmission of 4K UHD, HDTV, 3G-SDI, HD-SDI, SDI and analogue video signals
- 720p, 1080i, 1080p, 1080p120, 2160p30 compatible
- Solid centre conductor for High-Performance
- Designed for Cinema rooms, touring and outside broadcast
**Check out our ‘Length v’s Performance Guide’
Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, bend or crush them as this will have a significant impact on performance.
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Cable Type | Coaxial - 50ohm, 75ohm, SDI |
Cable Brand | Belden |
Cable Conductor | 18 AWG - Bare Coppe |
Cable Capacitance | 16.2 pF/ft (53.1 pF/m) |
Cable Screening | Tri-Laminate (Alum+Poly+Alum) Duofoil® 100% + Tinned Copper Braid |
Overall Diameter | 7mm |
Cable Jacket | Black - PVC - Polyvinyl Chloride |
