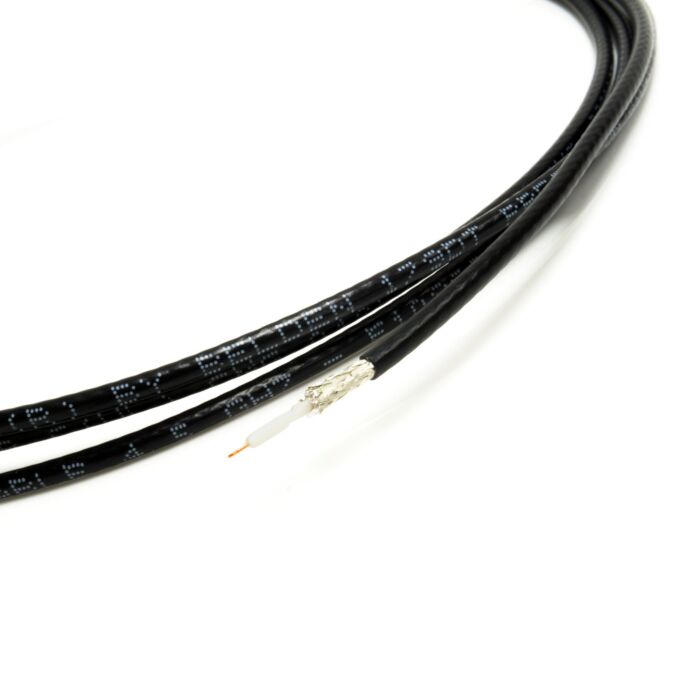

Belden 179DT Miniature 75 ohm Coaxial Cable. Light weight. thin. flexible Coax
As low as
£0.44
In stock
SKU
BELDEN.179DT.THIN.COAX
Multibuy discounts calculated at checkout
Low Loss Serial Digital Coax, Riser-CMR, Ultra-miniature, RG-179/U, 28.5 AWG solid bare copper conductor, foam HDPE core, Duofoil, + 95% tinned copper braid, PVC jacket
Low Loss Serial Digital Coax, Riser-CMR, Ultra-miniature, RG-179/U, 28.5 AWG solid bare copper conductor, foam HDPE core, Duofoil, + 95% tinned copper braid, PVC jacket
Serial Digital Coax, Ultra-miniature, RG179 Type, 28.5 AWG Solid BC, Foil + TC Braid, CMR
Suitable Applications
- Broadcast Mobil Trucks
- Digital Video
- Precision Video
- Telecommunications
Techincal Info
- AWG - 28.5
- Stranding - Solid
- Material - BC - Bare Copper
- Nominal Diameter - 0.012 in
- No. of Coax - 1
**Check out our ‘Length v’s Performance Guide’
Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, bend or crush them as this will have a significant impact on performance
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Coaxial - 50ohm, 75ohm, SDI |
| Cable Brand | Belden |
| Cable Conductor | 28.5AWG Solid Stranding Bare Copper |
| Cable Resistance | 75 Ohm |
| Cable Capacitance | 17.4 pF/ft |
| Cable Screening | Tinned copper braid + Aluminium foil shield |
| Overall Diameter | 2.6mm Overall Diameter |
| Cable Jacket | PVC - Polyvinyl Chloride |
