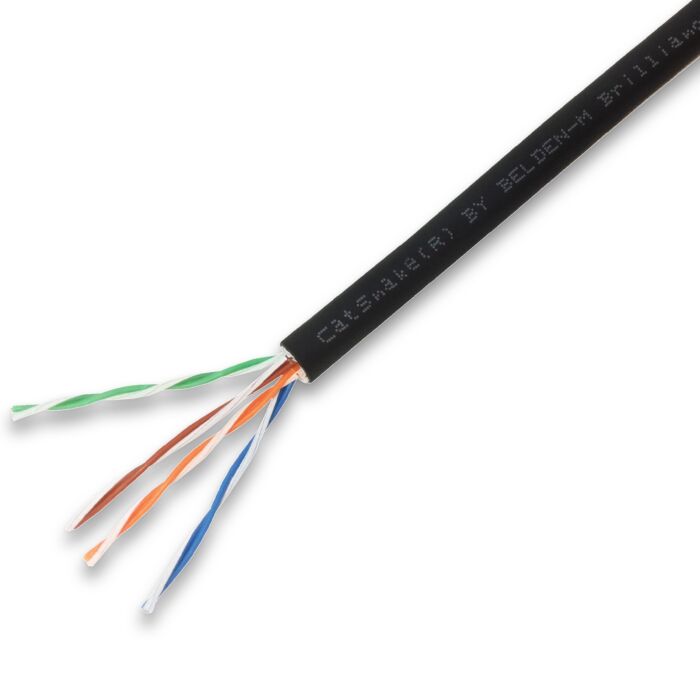

Belden 1305A Tactical CatSnake Cat 5E Premium UTP Cable. Dante Network Ethernet
Multibuy discounts calculated at checkout
CatSnake® UTP cables offer exceptional audio/video performance, plus they are extremely rugged and flexible for use out of doors, in broadcast truck applications, in studios and for portable, professional audio/video use.
CatSnake® UTP cables offer exceptional audio/video performance, plus they are extremely rugged and flexible for use out of doors, in broadcast truck applications, in studios and for portable, professional audio/video use.
Belden® now offers Brilliance CatSnake Category 5e cables for use in patching Ethernet or digital audio/video formats utilizing Cat 5e-type cable. Because these Category 5e UTP cables are extremely rugged and utilize Belden’s patented Bonded-Pair design, they are able to be used in high traffic areas in a broadcast studio or in any type of tactical, field deployable audio/video installation.
Bonded-Pair Design Means Installable Performance. The consistency of a UTP cable can determine its transmission distance. Physical characteristics, such as the cable's conductor-to-conductor spacing relationship along the full length of the cable, can affect how far a signal can be carried at a given frequency without excessive attenuation due to Return Loss.
CatSnake Bonded-Pair Cat 5e Audio cables maintain their impedance and Return Loss performance when flexed and handled in rugged, harsh environments. Bonded-Pairs are the result of Belden's patented design that bonds the individual insulated conductors together along the full length of the cable. The cable therefore exhibits a uniform conductor-to-conductor spacing relationship along its longitudinal axis that assures consistent impedance characteristics. Nonbonded-pair cables tend to gap during their flexing, coiling and handling — or during normal use. These gaps typically create an impedance mismatch. Belden calls this superior after-installation and in-use performance, Installable Performance; Portable Performance is the term used for portable applications.
Rugged, Portable Performance. To further ensure the ruggedness, portability, survivability and re-useability of these cables, Belden has either a heavy jacket wall version for medium duty applications or an upjacketed version for the harshest heavy-duty environments. To make them flexible, these cables have stranded (7x32) conductors and matte-finished Belflex® jackets. These cables also pass the UL 1581 -40°C Cold Bend test and are RJ-45 and Neutrik EtherCon® compatible.
- Category 5e
- 24 AWG Bonded-Pairs Stranded (7x32) BC Conductors
- Rip Cord
- Polyolefin Insulation
- PVC Inner Jacket
- Matte Black Flexible PVC Outer Jacket. 8mm Overall diameter
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Cable Type | Network - Cat5 & Cat6 |
Cable Brand | Belden |
Cable Conductor | - |
Cable Resistance | - |
Cable Capacitance | - |
Cable Screening | - |
Overall Diameter | - |
Cable Jacket | - |
