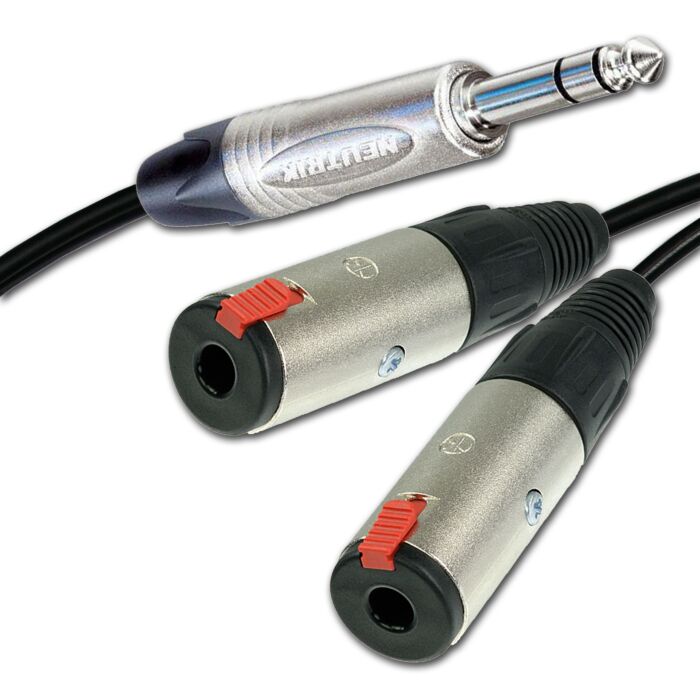

Neutrik TRS Jack Split to 2x Dual Female Jack Sockets. Balanced Duplicator Lead
As low as
£35.25
In stock
SKU
NP3X-SOPCOK-x2NJ3FC6C
Multibuy discounts calculated at checkout
A clever cable that can either duplicate or sum a balanced or stereo signal. The signal is duplicated onto both 1/4" TRS sockets. If you are unsure about what you need please ask.
A clever cable that can either duplicate or sum a balanced or stereo signal. The signal is duplicated onto both 1/4" TRS sockets. If you are unsure about what you need please ask.
This lead allows you to split a balanced signal into two identical balanced signal lines. For example; Splitting the balanced Jack output of a mixing desk into two. We have used female Jack sockets to make it a very flexible/configurable extension lead, allowing you to connect two normal TRS balanced jack leads.
The lead comprises of Sommer’s SC Peacock Twin Balanced Cable, a Neutrik TRS Jack and Neutrik Silver Female Jack Sockets. Both components being excellent in quality and built to last. The internal cable strain relief inside the Female jack is Neutrik’s unique ‘Chuck Type’ offering exceptional restraint.
We sell these leads in many different combinations. Please see in store for the different variations.
- Tour Grade Neutrik NP3X Silver 1/4" TRS Jacks
- Tour Grade Neutrik NJ3FC6C Female Silver 1/4" TRS Jack socket
- Sommer Peacock twin shotgun cable
- Cable split at approximately 15cm (can be easily modified)
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF |
| Cable Resistance | Cond. resistance per 1 km (AES/EBU, DMX): 90 Ω |
| Cable Conductor | AWG 24. Shielding: Copper spiral sleeve |
| Cable Screening | 5.05587E+12 |
| Cable Jacket | Jacket material: S-PVC. Width: 9.2 mm - Height: 4.5 mm |
| Overall Diameter | - |
| Cable Brand | Sommer |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
