Angled Midi Lead. Pedal Board Cord. Keyboard. Synth. Foot Switch Cable 5 Pin Din
As low as
£23.25
In stock
SKU
05DLMX*5-VDSQ-NYS322*5
Multibuy discounts calculated at checkout

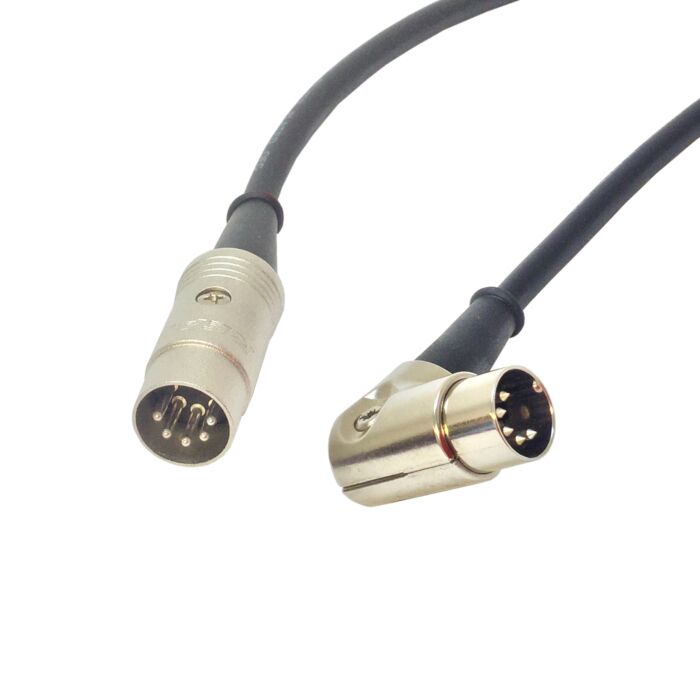

High quality angled midi leads made using a Switchcraft 'all metal' 5 pin din angled plug and a REAN 'all metal' 5 pin din straight plug. The cable used is the highly flexible Neoprene XKE from Van Damme. All pins are wired in these leads so they will carry Phantom Power should you need it to power your devices.
High quality angled midi leads made using a Switchcraft 'all metal' 5 pin din angled plug and a REAN 'all metal' 5 pin din straight plug. The cable used is the highly flexible Neoprene XKE from Van Damme. All pins are wired in these leads so they will carry Phantom Power should you need it to power your devices.
High quality angled midi leads made using a Switchcraft 'all metal' 5 pin din angled plug and a REAN 'all metal' 5 pin din straight plug. The cable used is the highly flexible Neoprene XKE from Van Damme. All pins are wired in these leads so they will carry Phantom Power should you need it to power your devices. If you require specific lengths please do not hesitate to contact us, all cables are made to order so can be customised to suit. All cables are measured 'exposed cable', so a 25cm lead will have 25cm of visible cable + the plugs. (approx another 10cm.)
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen 95 pF/m nominal |
| Cable Resistance | Conductor <93 Ohm/Km |
| Cable Conductor | 7 x 0.08mm Bare Silver Plated UPOFC + 32 x 0.08mm Bare UPOFC |
| Cable Screening | - |
| Cable Jacket | Flexible PVC/Neoprene composite / Overall Diamter 6.15mm |
| Overall Diameter | - |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
