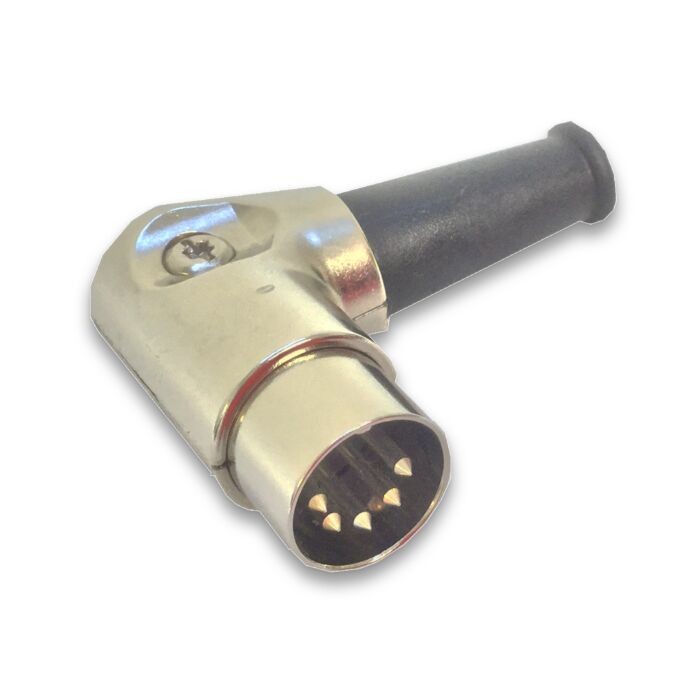

Angled 5 Pin Din. Switchcraft 05DL5MX. Adjustable angles
£14.00
In stock
We have 29 items in stock!
SKU
DIN_05DL5MX*5(5pinAngled)
Multibuy discounts calculated at checkout
- Buy 5 for £13.30 each and save 5%
- Buy 10 for £12.60 each and save 10%
- Buy 15 for £11.90 each and save 15%
- Buy 20 for £11.20 each and save 20%
Male cord plug with shielded barrel and insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. These can be adjusted at the time of assembly to an angle to suit your needs
Male cord plug with shielded barrel and insulated snaplock plastic body. Two piece metal barrel surrounds pin insert to form an electrical shield. These can be adjusted at the time of assembly to an angle to suit your needs
Electrical Specs
- Contact Resistance: Cord Plugs and Receptacles; .010 ohms, contact spring/pin .030 ohms, ground clip/shell. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts.
- Dielectric Withstanding Voltage: 500 V (rms)
- Contact Rating: 5-pin; 3A, 34 V DC
- Leakage Resistance: 105M (ohm)
- Recommended Wire Size: 22 wire gauge maximum
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
| Pack Quantity | Pack of 1 |
