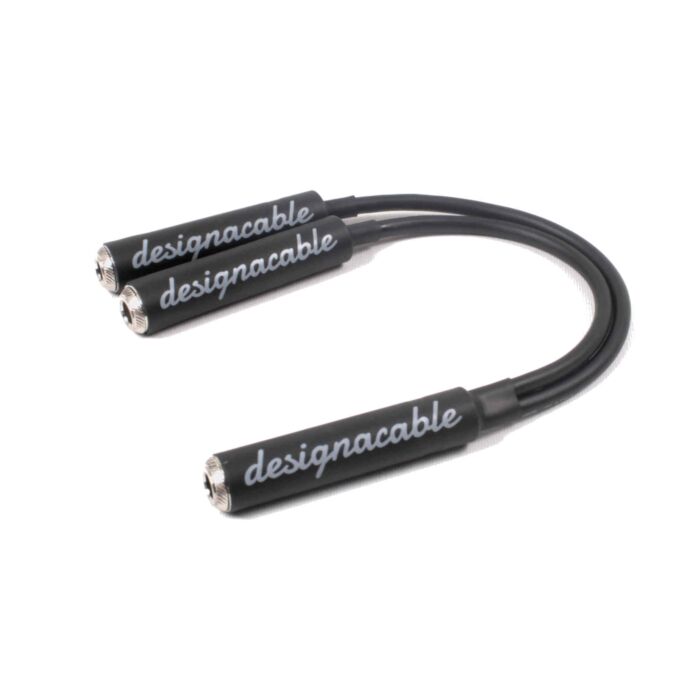

6.35mm TRS Socket to 2x 6.35mm TRS Sockets parallel splitter, Balanced Adaptor
£17.79
In stock
We have 150 items in stock!
SKU
NYS2203P-2xMIPP.0010-2xNYS2203P
Multibuy discounts calculated at checkout
Passive Stereo TRS socket to 2x TS 6.35mm Jack splitting adaptor, this adaptor can be used for splitting TRS stereo to a dual channel mixing desk. Or summing a dual channel stereo output to a single TRS input.
Passive Stereo TRS socket to 2x TS 6.35mm Jack splitting adaptor, this adaptor can be used for splitting TRS stereo to a dual channel mixing desk. Or summing a dual channel stereo output to a single TRS input.
Having this handy Adapter in your live rig bag or keeping them around the studio, for all round handiness as you never know when the situation will arise when an adaptor resolves the situation quickly.
This cable has been constructed using the best quality connectors from Neutrik, with pro grade Van Damme cable. While selecting the slender profile socket keeping the size of the cable down, as we all know that patch bays can get messy.
Connectors –
NP2X-BAG – 2 pole 1/4" professional phone plug, nickel contacts, black shell.
NYS2203P – 3 Pole, 6.35mm (¼") jack socket - full metal Socket with >1GR Insulation resistance.
Cable –
Van Damme Unbalanced Pro Patch LITE – Pro-patch cable is a reduced overall diameter version of the Classic XKE instrument cable also for unbalanced audio use.
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen pF/m 95 nominal |
| Cable Resistance | Conductor Ohm/Km <85 |
| Cable Conductor | (24awg) Bare silver plated UPOFC wire, Stranding 7 x 0.10mm. Bare UPOFC wire, Stranding 21 x 0.10mm |
| Cable Screening | 96 x 0.10mm braided tinned oxygen free copper wire. Coverage 95% |
| Cable Jacket | Flexible PVC/Neoprene composite |
| Overall Diameter | 4.85mm ±0.10 |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Nickel Plated |
| Number of Contacts | 3 Pole |
