PCE is specialized in the production of industrial plugs, sockets and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.

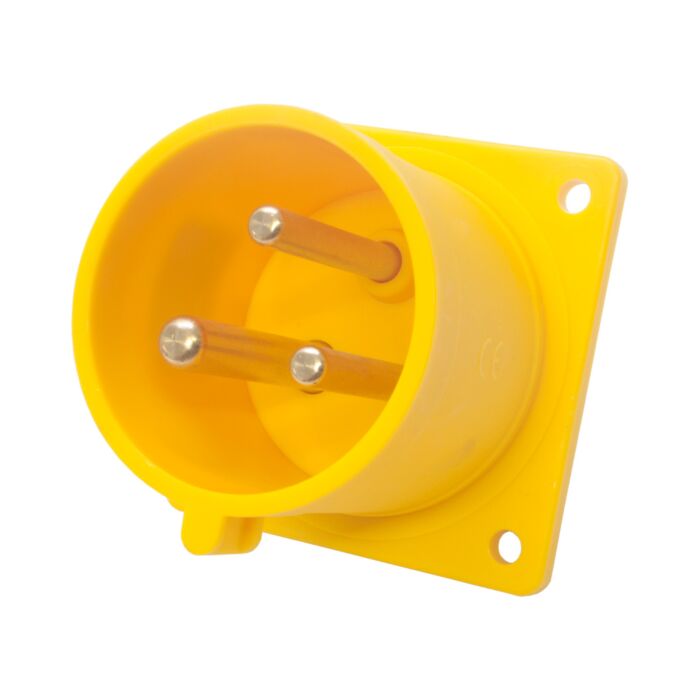

Screw terminals
Brass contacts
2.5mm to 6mm Wiring
Housing material PA6
32A 110V 2P+E IP44
Flange Size 70 x 70 mm
Fixing Centre 56 x 56 mm

CEE-plugs and sockets with rated currents 16A and 32A must meet the system of protection IP44 or IP67;

PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:

excellent impact resistance combined with high rigidity and solidity,
high thermal stability (self-extinguishing),
very good insulating qualities,
high disruptive strength,
high abrasion resistance,
high weathering resistance,
very good chemical resistance to various chemicals,
free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
conform to RoHS-directiv 2011/65/EU

More Information
Delivery Speed	Next Day delivery available if 'In Stock'
Connection Type	CEEform Panel Mount
Mounting Method	Panel Mount - Screw Terminal
Contact Material	Solid Brass
Number of Contacts	3 Pole
Current Rating	32 amps
Voltage Rating	230-240v
IP Rating	IP44
Pack Quantity	Pack of 1
