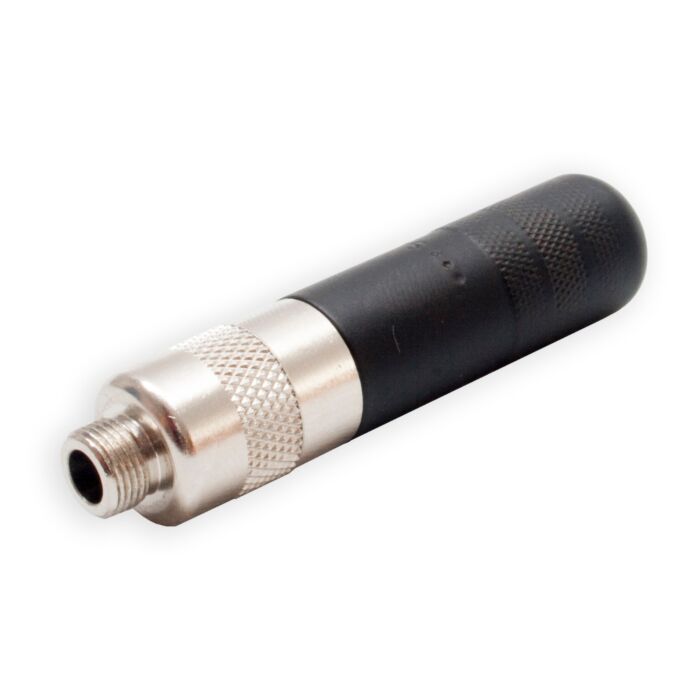

3.5mm Switchcraft Silver 35LJNS (black Shell) Female Mini Jack Socket Connector
£14.75
In stock
We have 13 items in stock!
SKU
MINI.JACK_35LJNS
Multibuy discounts calculated at checkout
- Buy 5 for £14.01 each and save 5%
- Buy 10 for £13.28 each and save 10%
- Buy 15 for £12.54 each and save 15%
- Buy 20 for £11.80 each and save 20%
3.5mm inline jacks with sturdy solid metal housing. Rated to 5,000 insertion/ withdrawal cycles. Two piece design simplifies terminations. Mates with 35HD series locking or non-locking plugs
3.5mm inline jacks with sturdy solid metal housing. Rated to 5,000 insertion/ withdrawal cycles. Two piece design simplifies terminations. Mates with 35HD series locking or non-locking plugs
Specifications
Electrical Specifications
- Contact Resistance: 0.020 ohms
- Insulation Resistance : 2000 megohms
- Dielectric Withstand Voltage: 250VAC
Mechanical Specifications
- Insertion Force: 8 lbs MAX
- Withdrawal Force: 1lbs MIN
- Life Cycles: 5,000 insertion/ withdrawal cycles
- Max Soldering Temp/Time: 800°F/10s or 700°F/20s
- Vibration per MIL-STD-202F Method 201
- Thermal Shock per MIL-STD-202F Method 107G
Material Specifications
- Sleeve: Copper alloy, nickel
- Handle: Copper alloy, nickel
- Cable Clamp: C.R.S., tin-plated
- Solder Terminal: Copper alloy, silver
- Insulator: Thermoplastic, black
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
