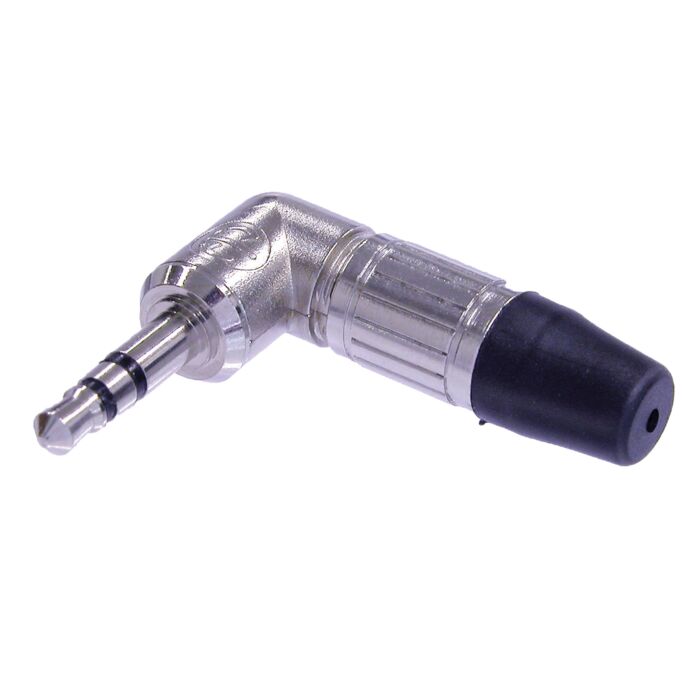

3.5mm Neutrik NTP3RC Silver Stereo Angled Mini Jack Connector

NTP3RC

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts

The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.

Features & Benefits

• All metal housing - robust and reliable
• Chuck type cable clamp and rubber gland - excellent cable protection
• Slim design - space saving

Technical Information

Connection Type - Plug

Gender - male

Electrical

• Contact resistance - depends on mating connector mΩ (inner)
• Dielectric strength - 1 kVdc
• Insulation resistance - 2 GΩ (initial)

Mechanical

• Cable O.D. - 2 - 4.5 mm
• Wiresize -0,22 mm²
• Wiresize - 24 AWG
• Wiring Solder contacts

Material

• Bushing Brass (CuZn39Pb3) + PU, Ni
• Contact plating 2 µm Ni (Su)
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 15 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Solderability - Complies with IEC 68-2-20
• Temperature range -20 °C to +65 °C
