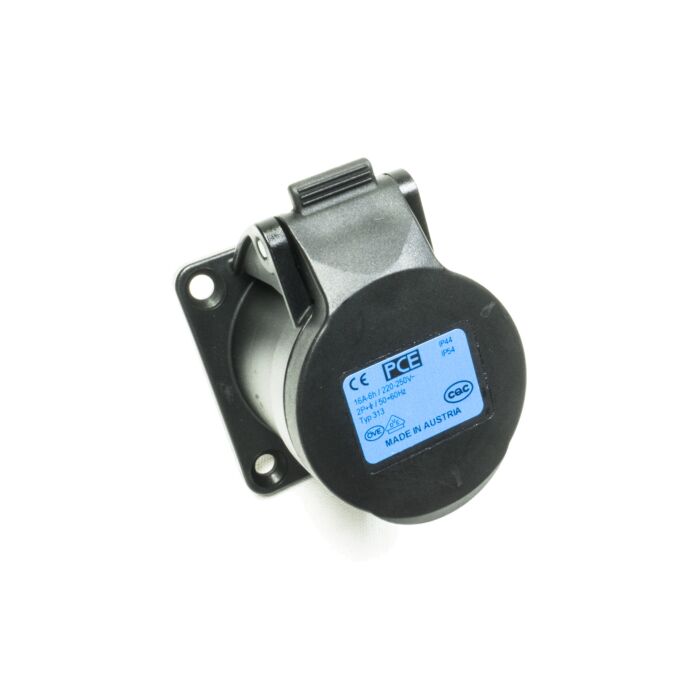

16amp 230v 2P+E IP44 Black Straight Flush Panel OUTLET Female Socket. PCE (313-6f6x)
£5.11
In stock
We have 37 items in stock!
SKU
MAINS_PCE.16A.PANEL.OUTLET.BK.STRAIGHT
Multibuy discounts calculated at checkout
- Buy 5 for £4.85 each and save 5%
- Buy 10 for £4.60 each and save 10%
- Buy 15 for £4.34 each and save 15%
- Buy 20 for £4.09 each and save 20%
High quality chassis mount connectors made from POLYAMIDE 6, see listing description for full technical spec.
High quality chassis mount connectors made from POLYAMIDE 6, see listing description for full technical spec.
PCE is specialized in the production of industrial plugs, sockets and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.
- Screw terminals
- Brass contacts
- 1.0 - 2.5mm Wiring
- Housing material PA6
- 16A 230V 2P+E IP44
- Flange Size 60 x 60 mm
- Fixing Centre 47 x 47 mm
CEE-plugs and sockets with rated currents 16A and 32A must meet the system of protection IP44 or IP67;
PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:
- excellent impact resistance combined with high rigidity and solidity,
- high thermal stability (self-extinguishing),
- very good insulating qualities,
- high disruptive strength,
- high abrasion resistance,
- high weathering resistance,
- very good chemical resistance to various chemicals,
- free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Connection Type | CEEform Panel Mount |
Mounting Method | Panel Mount - Screw Terminal |
Contact Material | Solid Brass |
Number of Contacts | 3 Pole |
Current Rating | 16 amps |
Voltage Rating | 230-240v |
IP Rating | IP44 |
Pack Quantity | Pack of 1 |
